Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.35 Pitch

Product Code: 827 3,002

$117.91$107.19 Ex. GST

Product Code: 827 3,002 SKU 827 3,002 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.35 Pitch

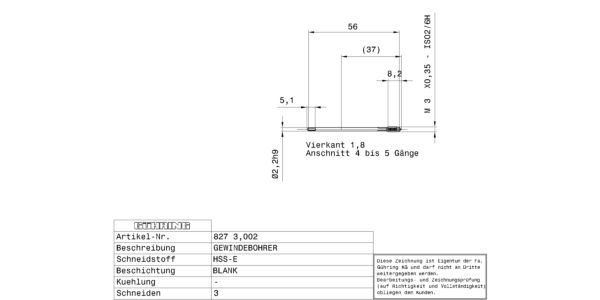

Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.35 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric fine threads M3 x 0,35 / ISO2/6H / 3xD / DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0040 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 374 Surface: bright Discount group: 103 Type: 827 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: yellow ring Threads: MF Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 3.002 Weight: 0.004 No of cutting edges: 3 Total length: 56.000 Thread length: 7.000 Groove length: 14.000 Usable length: 18.000 Norm 2: DIN 2184-1 Wrench opening 1: 1.800 Core hole Ø: 2.65 Shank Ø: 2.200 Nominal dimension thread: M3 x 0,35 Pitch: 0.350 External Ø: 3.040 Reach length: 37.000 Statistical goods number: 82074010

Brand

Guhring
