Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.5 Pitch

Product Code: 827 6,003

$115.58$105.07 Ex. GST

Product Code: 827 6,003 SKU 827 6,003 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.5 Pitch

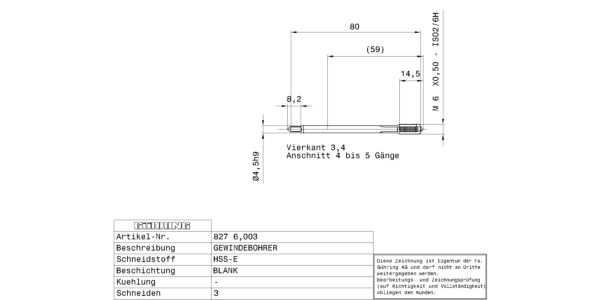

Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.5 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric fine threads M6 x 0,5 / ISO2/6H / 3xD / DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0090 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 374 Surface: bright Discount group: 103 Type: 827 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: yellow ring Threads: MF Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 6.003 Weight: 0.009 No of cutting edges: 3 Total length: 80.000 Thread length: 13.000 Groove length: 26.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening 1: 3.400 Core hole Ø: 5.50 Shank Ø: 4.500 Nominal dimension thread: M6 x 0,5 Pitch: 0.500 External Ø: 6.050 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
