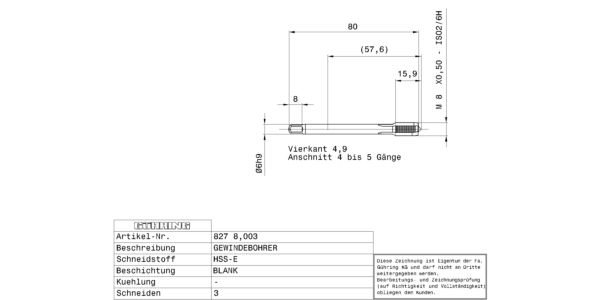

Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.5 Pitch

Connection code machine side: straight shank
Internal cooling: without
Norm: DIN 374
Surface: bright
Discount group: 103
Type: 827
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: yellow ring
Threads: MF
Tolerance class thread: ISO2/6H
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5,5
Code no.: 8.003
Weight: 0.021
No of cutting edges: 3
Total length: 80.000
Thread length: 14.000
Groove length: 26.000
Usable length: 30.000
Norm 2: DIN 2184-1
Wrench opening 1: 4.900
Core hole Ø: 7.50
Shank Ø: 6.000
Nominal dimension thread: M8 x 0,5
Pitch: 0.500
External Ø: 8.050
Reach length: 58.000
Statistical goods number: 82074010
