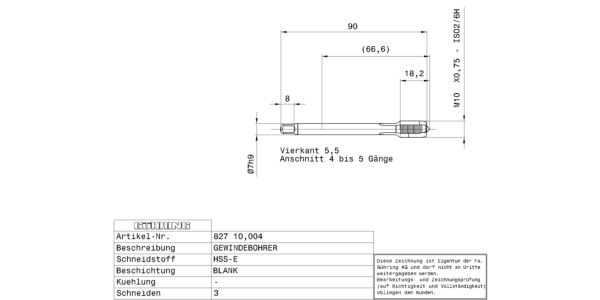

Guhring Fine pitch Gun nose tap HSS-E Yellow band 0.75 Pitch

Connection code machine side: straight shank
Internal cooling: without
Norm: DIN 374
Surface: bright
Discount group: 103
Type: 827
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: yellow ring
Threads: MF
Tolerance class thread: ISO2/6H
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5,5
Code no.: 10.004
Weight: 0.032
No of cutting edges: 3
Total length: 90.000
Thread length: 16.000
Groove length: 31.000
Usable length: 35.000
Norm 2: DIN 2184-1
Wrench opening 1: 5.500
Core hole Ø: 9.20
Shank Ø: 7.000
Nominal dimension thread: M10 x 0,75
Pitch: 0.750
External Ø: 10.060
Reach length: 67.000
Statistical goods number: 82074010
