Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Fine pitch Gun nose tap HSS-E Yellow band 1.0 Pitch

Guhring Fine pitch Gun nose tap HSS-E Yellow band 1.0 Pitch

Product Code: 827 16,005

$183.54$166.85 Ex. GST

Product Code: 827 16,005 SKU 827 16,005 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine pitch Gun nose tap HSS-E Yellow band 1.0 Pitch

Guhring Fine pitch Gun nose tap HSS-E Yellow band 1.0 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

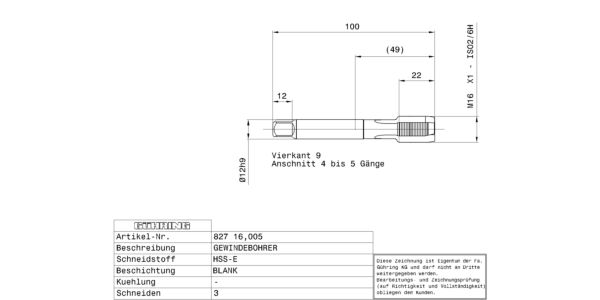

Machine taps for ISO metric fine threads M16 x 1 / ISO2/6H / 3xD / DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0810 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 374 Surface: bright Discount group: 103 Type: 827 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: yellow ring Threads: MF Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 16.005 Weight: 0.081 No of cutting edges: 3 Total length: 100.000 Thread length: 22.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 15.00 Shank Ø: 12.000 Nominal dimension thread: M16 x 1 Pitch: 1.000 External Ø: 16.070 Reach length: 49.000 Statistical goods number: 82074010

Brand

Guhring
