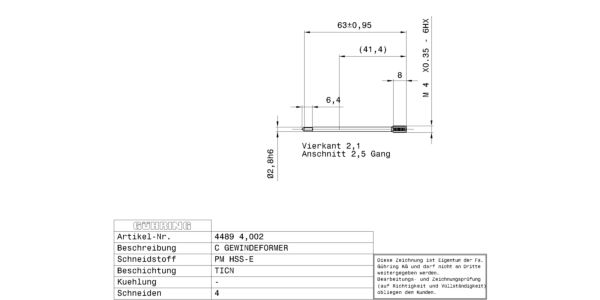

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 374
Surface: TiCN
Discount group: 208
Type: 4489
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: MF
Tolerance class thread: 6HX
Hole type: Through, Blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 4.002
Weight: 0.006
Number of cutting edges: 4
Total length: 63.000
Thread length: 8.000
Groove length: 13.500
Usable length: 21.000
Norm 2: DIN 2184-1
Wrench opening: 2.100
Core hole Ø: 3.85
Shank Ø: 2.800
Nominal dimension thread: M4 x 0.35
Pitch: 0.350
External Ø: 4.040
Reach length: 43.000
Statistical goods number: 82074010
