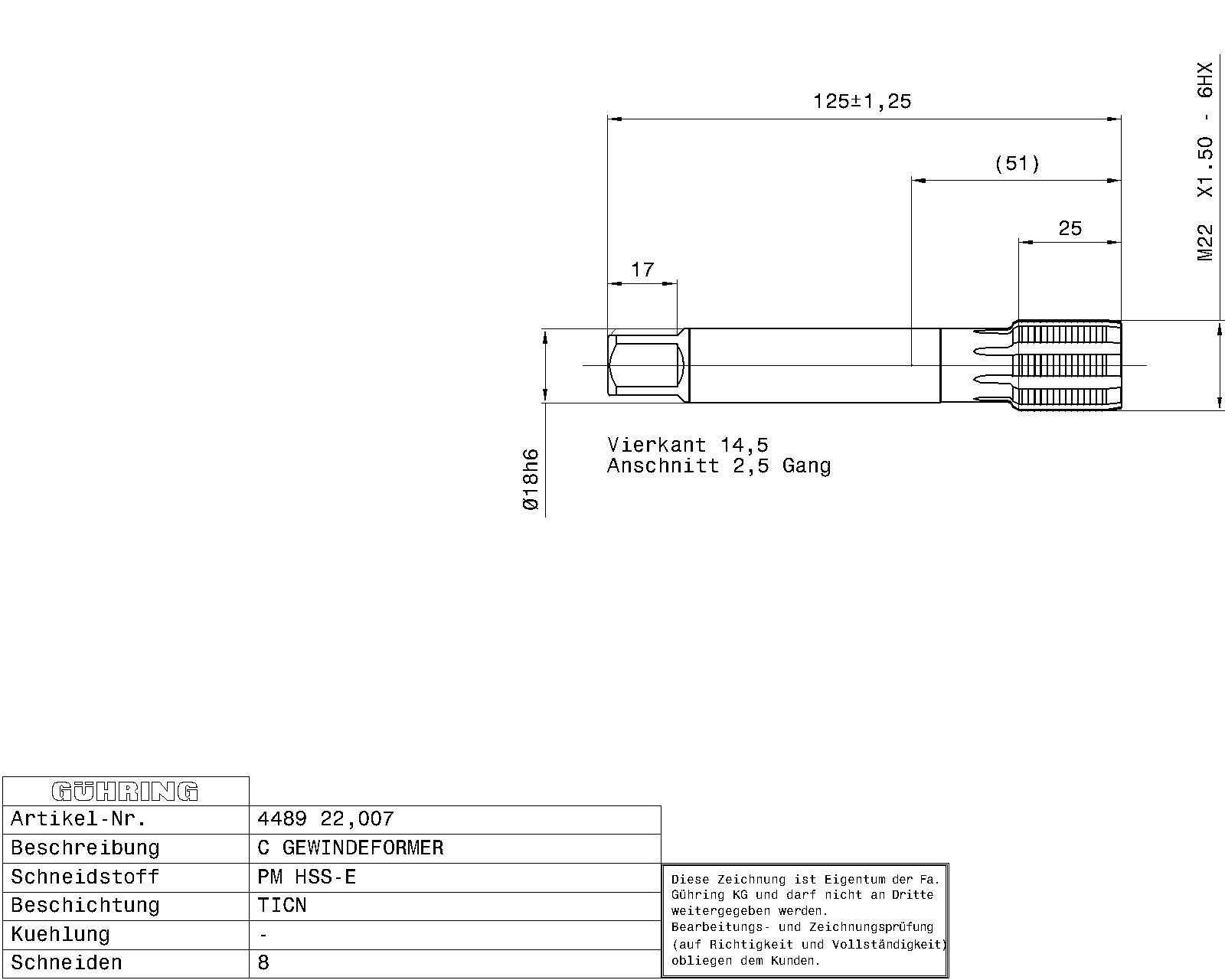

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 374
Surface: TiCN
Discount group: 208
Type: 4489
Cutting direction: Right-hand
Type: N
Material: HSS-E-PM
Additional information: Internal threading
Form: C
Threads: MF
Tolerance class thread: 6HX
Hole type: Through, Blind hole
Groove: With oil grooves
Chamfer lead length: 2-3
Code no.: 22.007
Weight: 0.273
Number of cutting edges: 8
Total length: 125.000
Thread length: 25.000
Groove length: 36.000
Usable length: 44.000
Norm 2: DIN 2174
Wrench opening: 14.500
Core hole Ø: 21.30
Shank Ø: 18.000
Nominal dimension thread: M22 x 1.5
Pitch: 1.500
External Ø: 22.090
Reach length: 51.000
Statistical goods number: 82074010
