Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Product Code: 4489 24,007

$944.64$858.76 Ex. GST

Product Code: 4489 24,007 SKU 4489 24,007 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

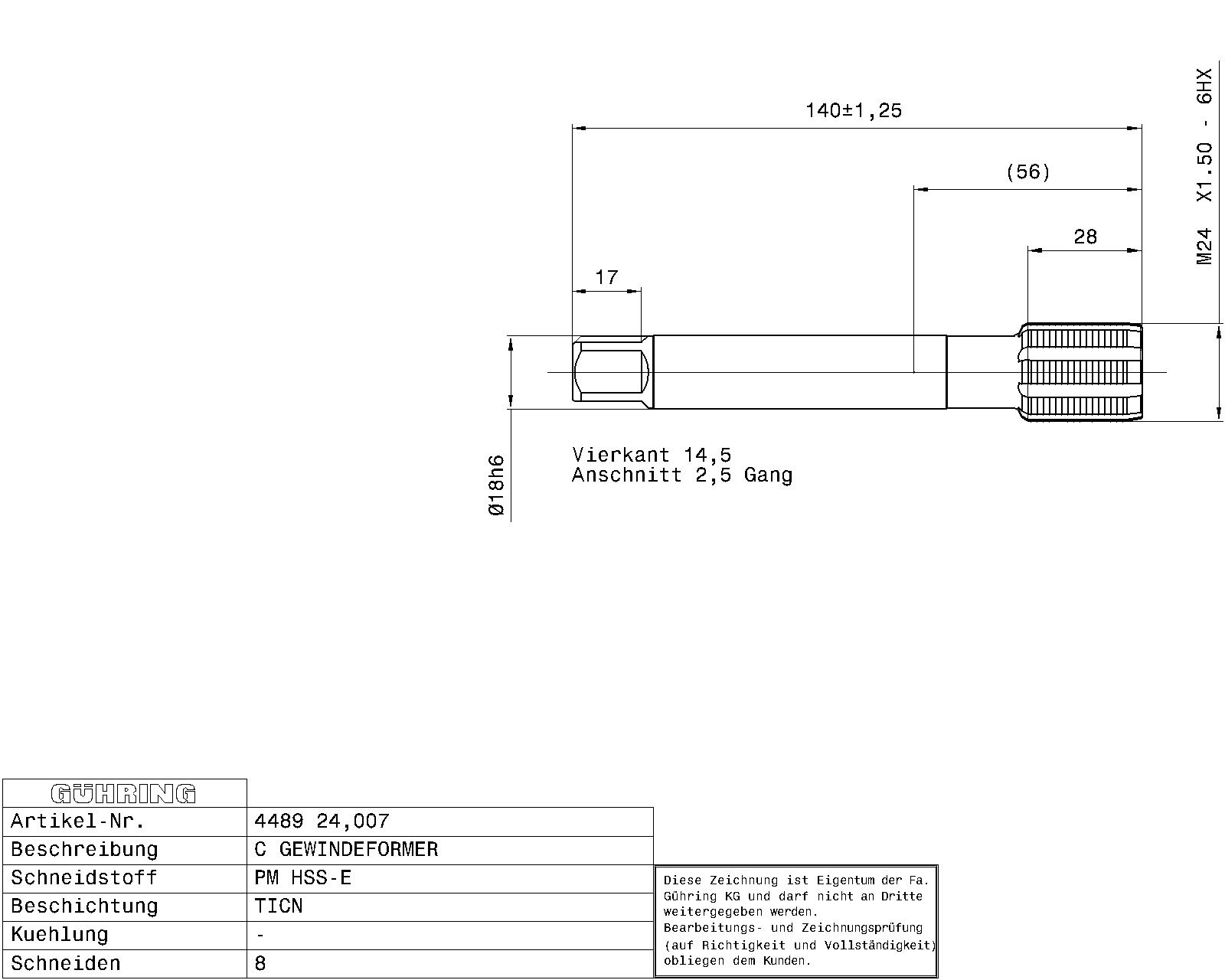

Fluteless machine taps for ISO metric fine threads M24 x 1,5 / 6HX / 3xD / ~DIN 374 / DIN 2174 / HSS-E-PM / TiCN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: N ≥ 7% Si

Additional information

Weight	0.317 kg
Dimensions
barcode	9044890240070
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 374 Surface: TiCN Discount group: 208 Type: 4489 Cutting direction: Right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: MF Tolerance class thread: 6HX Hole type: Through, Blind hole Groove: With oil grooves Chamfer lead length: 2-3 Code no.: 24.007 Weight: 0.317 Number of cutting edges: 8 Total length: 140.000 Thread length: 28.000 Groove length: 39.000 Usable length: 48.000 Norm 2: DIN 2174 Wrench opening: 14.500 Core hole Ø: 23.30 Shank Ø: 18.000 Nominal dimension thread: M24 x 1.5 Pitch: 1.500 External Ø: 24.090 Reach length: 56.000 Statistical goods number: 82074010

Brand

Guhring
