Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Product Code: 4489 6,004

$222.17$201.97 Ex. GST

Product Code: 4489 6,004 SKU 4489 6,004 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

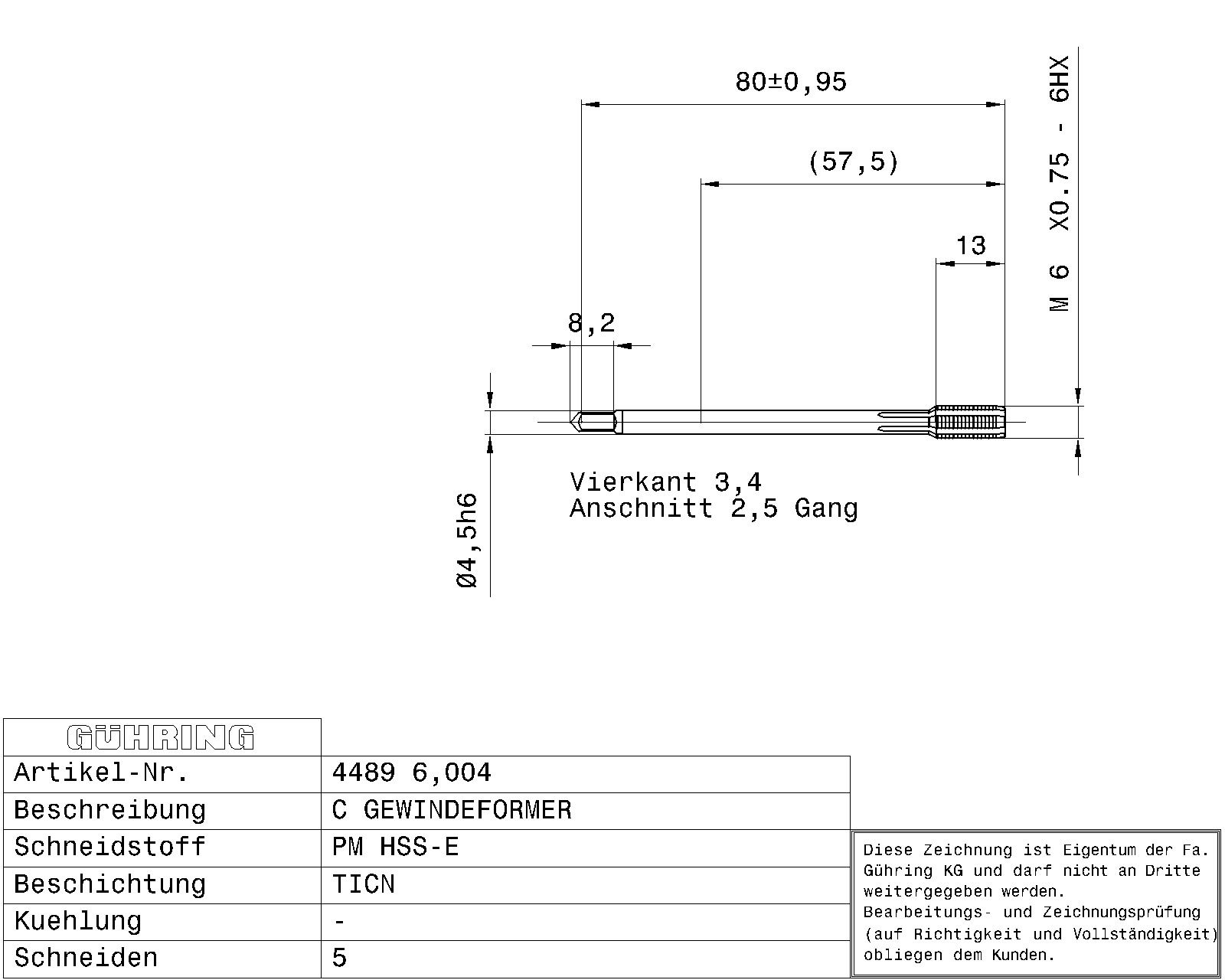

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric fine threads M6 x 0,75 / 6HX / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E-PM / TiCN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: N ≥ 7% Si

Additional information

Weight	0.013 kg
Dimensions
barcode	9044890060040
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 374 Surface: TiCN Discount group: 208 Type: 4489 Cutting direction: Right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: MF Tolerance class thread: 6HX Hole type: Through, Blind hole Groove: With oil grooves Chamfer lead length: 2-3 Code no.: 6.004 Weight: 0.013 Number of cutting edges: 5 Total length: 80.000 Thread length: 13.000 Groove length: 24.000 Usable length: 30.000 Norm 2: DIN 2184-1 Wrench opening: 3.400 Core hole Ø: 5.65 Shank Ø: 4.500 Nominal dimension thread: M6 x 0.75 Pitch: 0.750 External Ø: 6.050 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
