Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

Product Code: 4489 8,005

$254.38$231.25 Ex. GST

Product Code: 4489 8,005 SKU 4489 8,005 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated

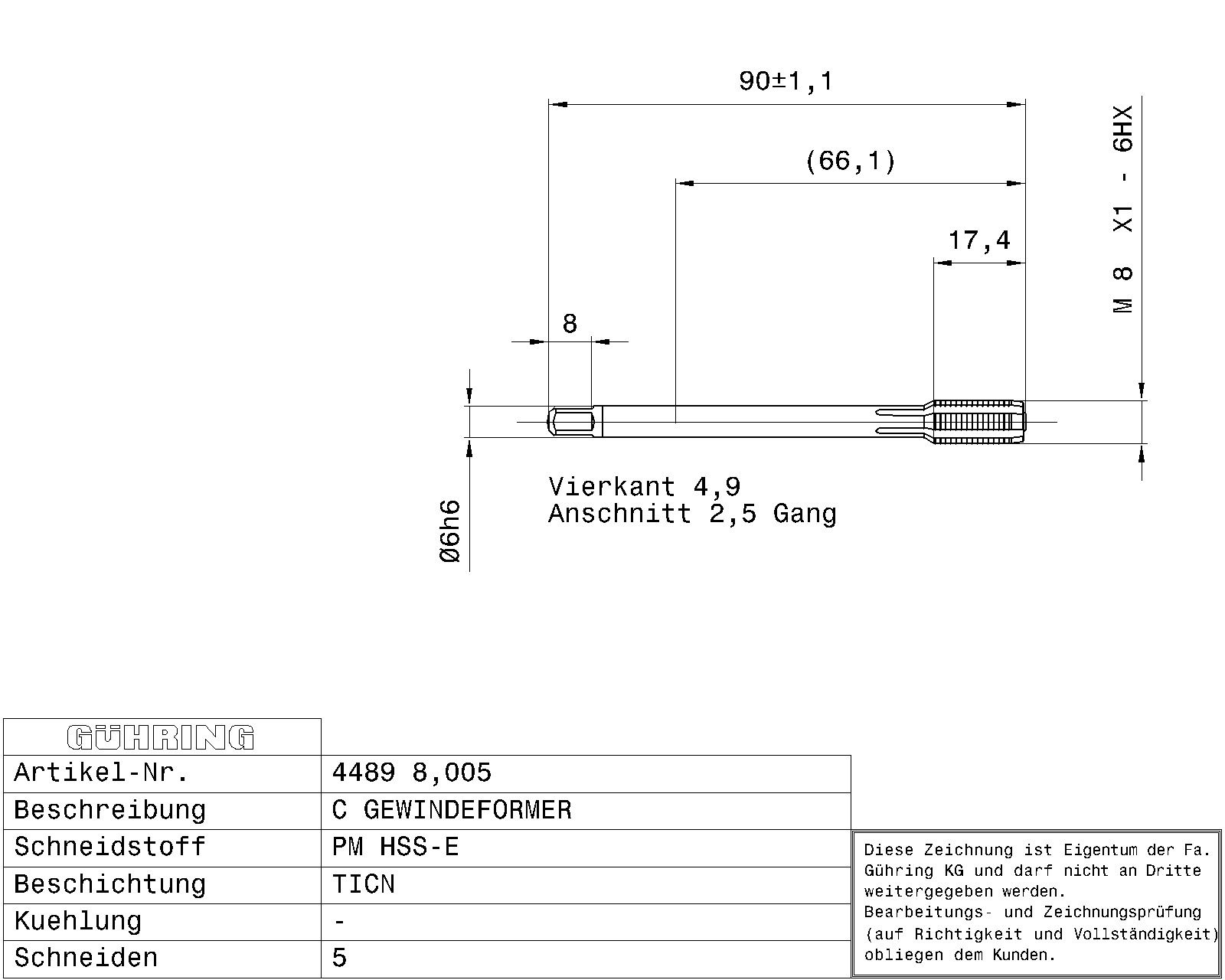

Guhring Fine Pitch Metric Fluteless Taps HSS-E-PM TiCN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric fine threads M8 x 1 / 6HX / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E-PM / TiCN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: N ≥ 7% Si

Additional information

Weight	0.026 kg
Dimensions
barcode	9044890080050
Additional Information	Connection code machine side: Straight shank Internal cooling: Without Norm: DIN 374 Surface: TiCN Discount group: 208 Type: 4489 Cutting direction: Right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: MF Tolerance class thread: 6HX Hole type: Through, Blind hole Groove: With oil grooves Chamfer lead length: 2-3 Code no.: 8.005 Weight: 0.026 Number of cutting edges: 5 Total length: 90.000 Thread length: 17.000 Groove length: 28.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening: 4.900 Neck Ø: 5.800 Core hole Ø: 7.55 Shank Ø: 6.000 Nominal dimension thread: M8 x 1 Pitch: 1.000 External Ø: 8.070 Reach length: 68.000 Body Ø: 6.000 Statistical goods number: 82074010

Brand

Guhring
