Guhring Fine pitch Spiral Tap HSS-E Blue band 0.35 Pitch

Product Code: 2864 3,002

$129.15$117.41 Ex. GST

Product Code: 2864 3,002 SKU 2864 3,002 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fine pitch Spiral Tap HSS-E Blue band 0.35 Pitch

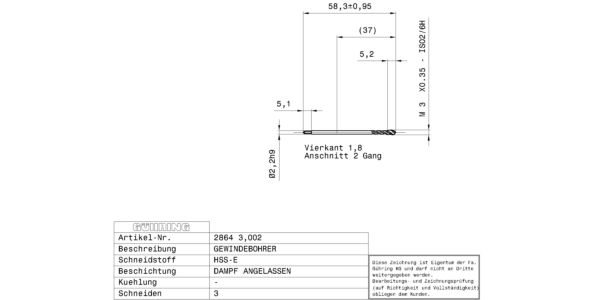

Guhring Fine pitch Spiral Tap HSS-E Blue band 0.35 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric fine threads M3 x 0,35 / ISO2/6H / 3xD / DIN 374 / DIN 2184-1 / HSS-E / steam tempered / Type: VA R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0040 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Internal Cooling: without Norm: DIN 374 Surface: steam tempered Discount Group: 103 Type: 2864 Cutting Direction: right-hand Type: VA R40 Material: HSS-E Additional Information: Internal threading Form: C Coloured Ring: blue ring Threads: MF Tolerance Class Thread: ISO2/6H Hole Type: blind hole Groove: 40° right hand helix Chamfer Lead Length: 2-3 Code No.: 3.002 Weight: 0.004 No. of Cutting Edges: 3 Total Length: 56.000 Thread Length: 4.000 Groove Length: 14.000 Usable Length: 18.000 Norm 2: DIN 2184-1 Wrench Opening 1: 1.800 Core Hole Ø: 2.65 Shank Ø: 2.200 Nominal Dimension Thread: M3 x 0.35 Pitch: 0.350 External Ø: 3.040 Reach Length: 37.000 Statistical Goods Number: 82074010

Brand

Guhring
