Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Fluteless taps M16 Carbo Coating For Aluminium

Guhring Fluteless taps M16 Carbo Coating For Aluminium

Product Code: 4676 16,000

$256.86$233.51 Ex. GST

Product Code: 4676 16,000 SKU 4676 16,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps M16 Carbo Coating For Aluminium

Guhring Fluteless taps M16 Carbo Coating For Aluminium - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

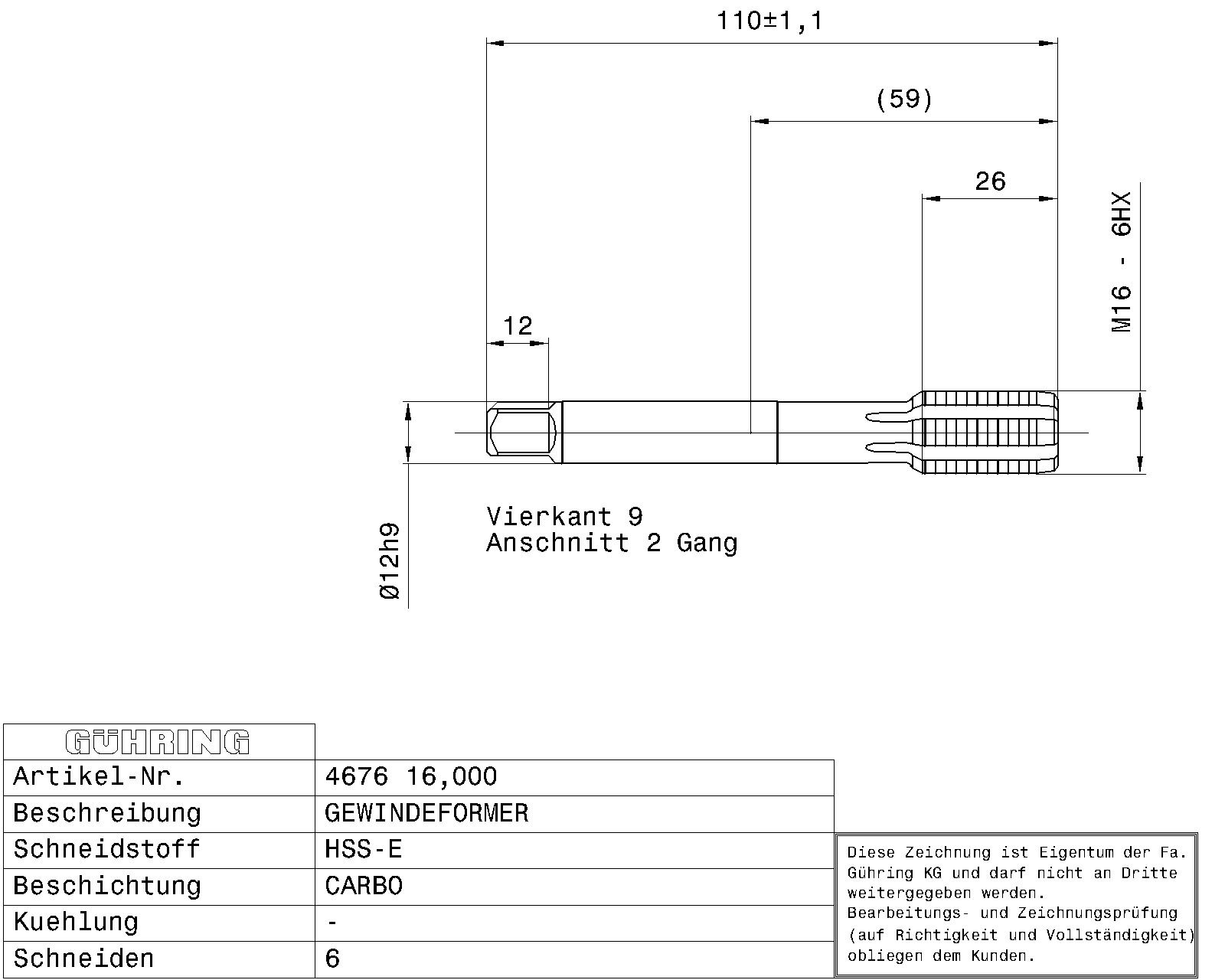

Fluteless machine taps for ISO metric threads M16 / 6HX / 3xD / ~DIN 376 / DIN 2174 / HSS-E / Carbo / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.106 kg
Dimensions
barcode	9046760160000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 376 Surface: Carbo Discount group: 103 Type: 4676 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 16.000 Weight: 0.106 No of cutting edges: 6 Total length: 110.000 Thread length: 26.000 Groove length: 37.000 Usable length: 54.000 Norm 2: DIN 2174 Wrench opening 1: 9.000 Core hole Ø: 15.10 Shank Ø: 12.000 Nominal dimension thread: M16 Pitch: 2.000 External Ø: 16.080 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
