Guhring Fluteless taps M2 Carbo Coating For Aluminium

Product Code: 4676 2,000

$42.19$38.35 Ex. GST

Product Code: 4676 2,000 SKU 4676 2,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps M2 Carbo Coating For Aluminium

Guhring Fluteless taps M2 Carbo Coating For Aluminium - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

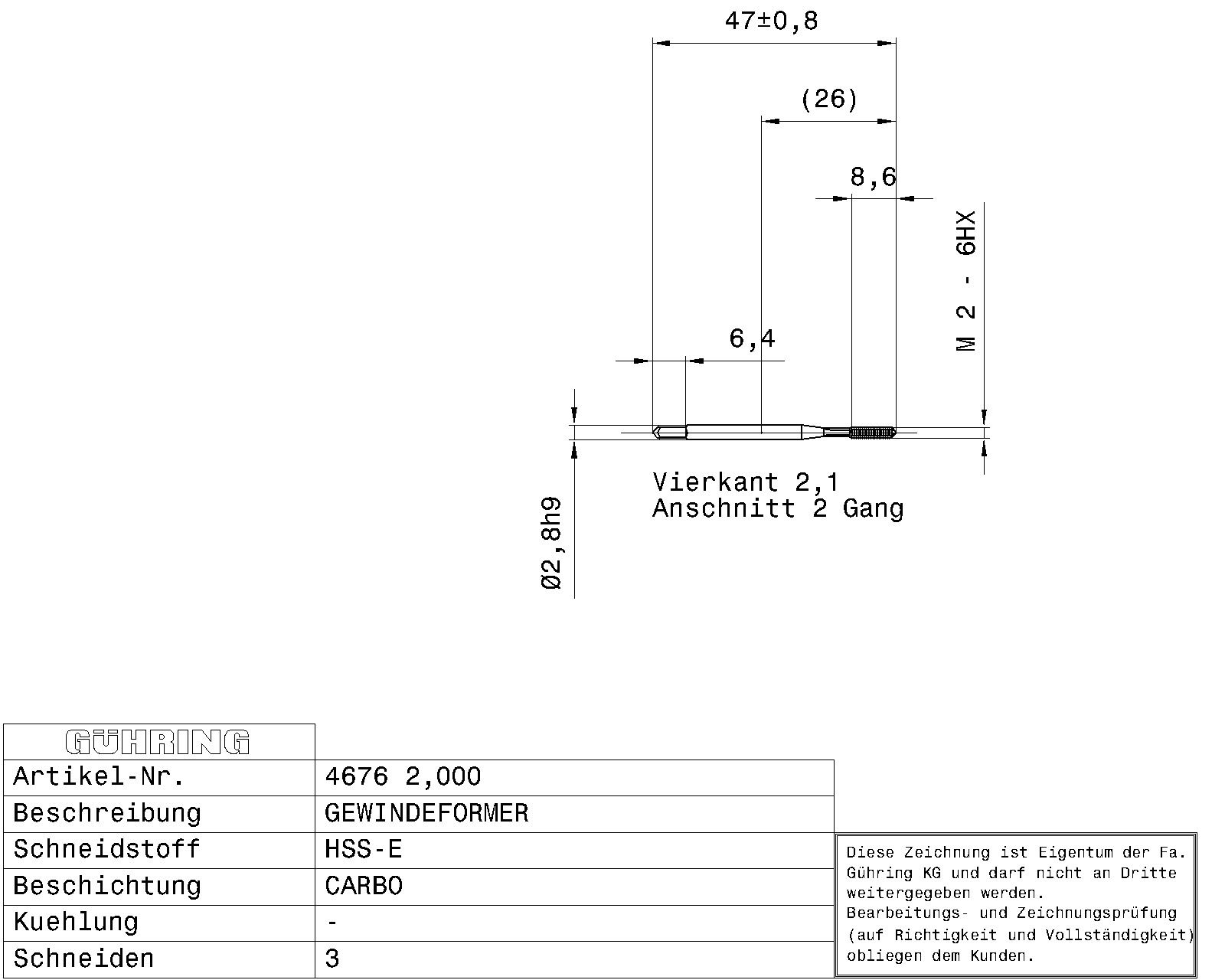

Fluteless machine taps for ISO metric threads M2 / 6HX / 3xD / ~DIN 371 / DIN 2174 / HSS-E / Carbo / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.004 kg
Dimensions
barcode	9046760020000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Carbo Discount group: 103 Type: 4676 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 2.000 Weight: 0.004 No of cutting edges: 3 Total length: 45.000 Thread length: 8.000 Groove length: 13.000 Usable length: 13.500 Norm 2: DIN 2174 Wrench opening 1: 2.100 Core hole Ø: 1.85 Shank Ø: 2.800 Nominal dimension thread: M2 Pitch: 0.400 External Ø: 2.040 Reach length: 26.000 Statistical goods number: 82074010

Brand

Guhring
