Guhring Fluteless taps M3 Carbo Coating For Aluminium

Product Code: 4676 3,000

$58.42$53.11 Ex. GST

Product Code: 4676 3,000 SKU 4676 3,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps M3 Carbo Coating For Aluminium

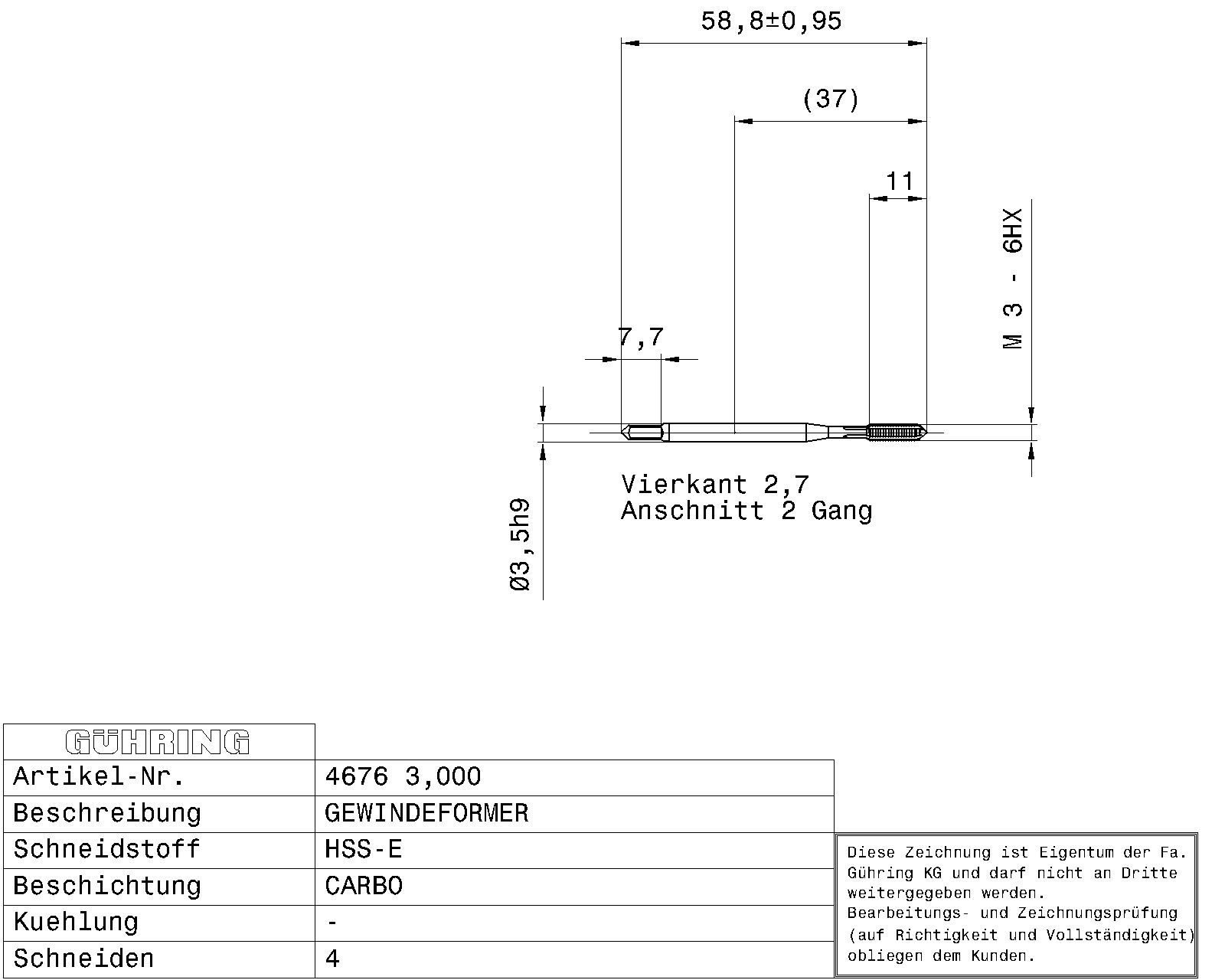

Guhring Fluteless taps M3 Carbo Coating For Aluminium - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric threads M3 / 6HX / 3xD / ~DIN 371 / DIN 2174 / HSS-E / Carbo / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.005 kg
Dimensions
barcode	9046760030000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Carbo Discount group: 103 Type: 4676 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 3.000 Weight: 0.005 No of cutting edges: 4 Total length: 56.000 Thread length: 10.000 Groove length: 15.000 Usable length: 18.000 Norm 2: DIN 2174 Wrench opening 1: 2.700 Core hole Ø: 2.80 Shank Ø: 3.500 Nominal dimension thread: M3 Pitch: 0.500 External Ø: 3.040 Reach length: 37.000 Statistical goods number: 82074010

Brand

Guhring
