Guhring Fluteless taps M4 Carbo Coating For Aluminium

Product Code: 4676 4,000

$60.54$55.04 Ex. GST

Product Code: 4676 4,000 SKU 4676 4,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps M4 Carbo Coating For Aluminium

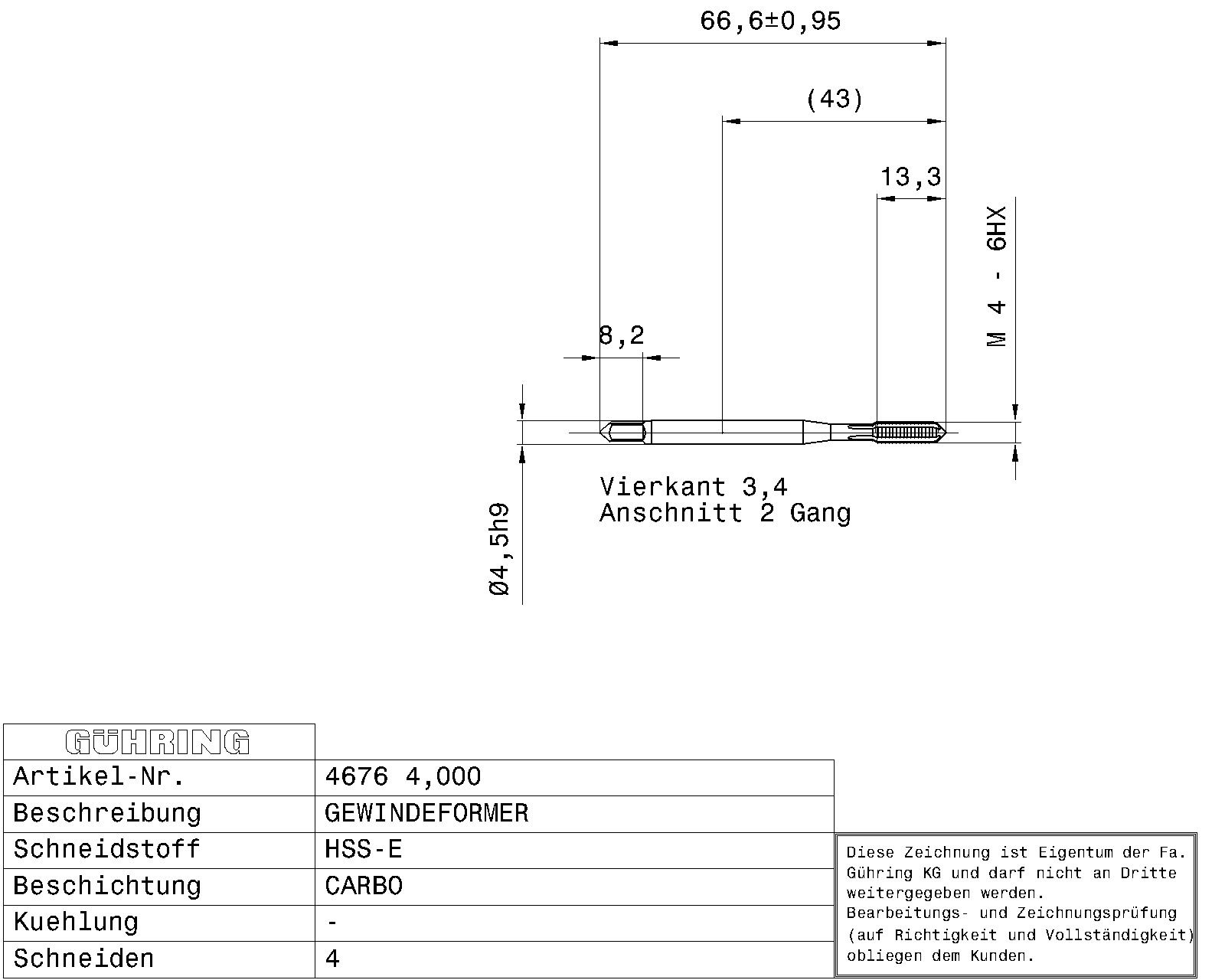

Guhring Fluteless taps M4 Carbo Coating For Aluminium - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric threads M4 / 6HX / 3xD / ~DIN 371 / DIN 2174 / HSS-E / Carbo / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.009 kg
Dimensions
barcode	9046760040000
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: Carbo Discount group: 103 Type: 4676 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 4.000 Weight: 0.009 No of cutting edges: 4 Total length: 63.000 Thread length: 12.000 Groove length: 17.500 Usable length: 21.000 Norm 2: DIN 2174 Wrench opening 1: 3.400 Core hole Ø: 3.70 Shank Ø: 4.500 Nominal dimension thread: M4 Pitch: 0.700 External Ø: 4.050 Reach length: 43.000 Statistical goods number: 82074010

Brand

Guhring
