Guhring Fluteless taps M5 Carbo Coating For Aluminium

Product Code: 1347 5,000

$122.46$111.33 Ex. GST

Product Code: 1347 5,000 SKU 1347 5,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps M5 Carbo Coating For Aluminium

Guhring Fluteless taps M5 Carbo Coating For Aluminium - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

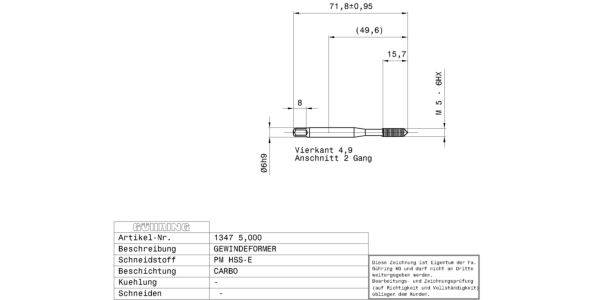

Fluteless machine taps for ISO metric threads M5 / 6HX / 1.5xD / ~DIN 371 / DIN 2174 / HSS-E-PM / Carbo / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.0160 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 371 Surface: Carbo Discount group: 103 Type: 1347 Cutting direction: right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: without oil grooves Chamfer lead length: 2-3 Code no.: 5.000 Weight: 0.016 Total length: 70.000 Thread length: 14.000 Usable length: 25.000 Norm 2: DIN 2174 Wrench opening 1: 4.900 Neck Ø: 4.000 Core hole Ø: 4.65 Shank Ø: 6.000 Nominal dimension thread: M5 Pitch: 0.800 External Ø: 5.060 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
