Guhring Fluteless taps M6 Carbo Coating For Aluminium

Product Code: 1347 6,000

$158.71$144.28 Ex. GST

Product Code: 1347 6,000 SKU 1347 6,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps M6 Carbo Coating For Aluminium

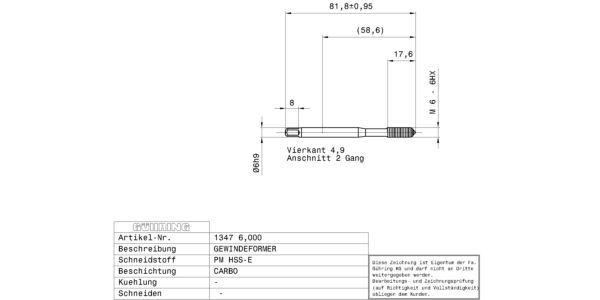

Guhring Fluteless taps M6 Carbo Coating For Aluminium - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric threads M6 / 6HX / 1.5xD / ~DIN 371 / DIN 2174 / HSS-E-PM / Carbo / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.0190 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 371 Surface: Carbo Discount group: 103 Type: 1347 Cutting direction: right-hand Type: N Material: HSS-E-PM Additional information: Internal threading Form: C Threads: M Tolerance class thread: 6HX Hole type: through-, blind hole Groove: without oil grooves Chamfer lead length: 2-3 Code no.: 6.000 Weight: 0.019 Total length: 80.000 Thread length: 16.000 Usable length: 30.000 Norm 2: DIN 2174 Wrench opening 1: 4.900 Neck Ø: 4.700 Core hole Ø: 5.55 Shank Ø: 6.000 Nominal dimension thread: M6 Pitch: 1.000 External Ø: 6.070 Reach length: 59.000 Statistical goods number: 82074010

Brand

Guhring
