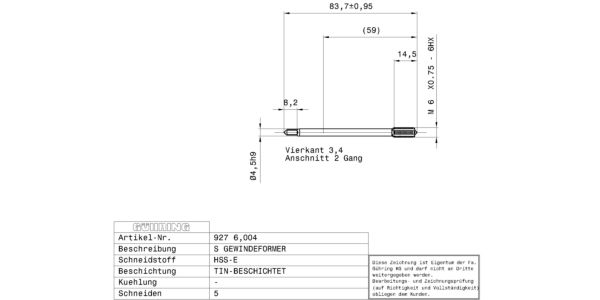

Guhring Fluteless taps with lubrication flutes TiN Coated 0.75 Pitch

Connection code machine side: straight shank
Internal cooling: without
Norm: ~DIN 374
Surface: TiN
Discount group: 103
Type: 927
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: C
Threads: MF
Tolerance class thread: 6HX
Hole type: through-, blind hole
Groove: with oil grooves
Chamfer lead length: 2-3
Code no.: 6.004
Weight: 0.010
No of cutting edges: 5
Total length: 80.000
Thread length: 13.000
Groove length: 24.000
Usable length: 30.000
Norm 2: DIN 2184-1
Wrench opening 1: 3.400
Core hole Ø: 5.65
Shank Ø: 4.500
Nominal dimension thread: M6 x 0,75
Pitch: 0.750
External Ø: 6.050
Reach length: 59.000
Statistical goods number: 82074010
