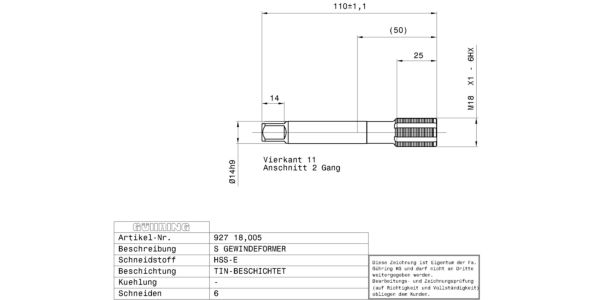

Guhring Fluteless taps with lubrication flutes TiN Coated 1.0 Pitch

Connection code machine side: straight shank
Internal cooling: without
Norm: ~DIN 374
Surface: TiN
Discount group: 103
Type: 927
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: C
Threads: MF
Tolerance class thread: 6HX
Hole type: through-, blind hole
Groove: with oil grooves
Chamfer lead length: 2-3
Code no.: 18.005
Weight: 0.138
No of cutting edges: 6
Total length: 110.000
Thread length: 25.000
Groove length: 36.000
Usable length: 44.000
Norm 2: DIN 2174
Wrench opening 1: 11.000
Neck Ø: 13.800
Core hole Ø: 17.55
Shank Ø: 14.000
Nominal dimension thread: M18 x 1
Pitch: 1.000
External Ø: 18.090
Reach length: 50.000
Statistical goods number: 82074010
