Guhring Fluteless taps with lubrication flutes TiN Coated 1.25 Pitch

Product Code: 927 10,006

$315.01$286.37 Ex. GST

Product Code: 927 10,006 SKU 927 10,006 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps with lubrication flutes TiN Coated 1.25 Pitch

Guhring Fluteless taps with lubrication flutes TiN Coated 1.25 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

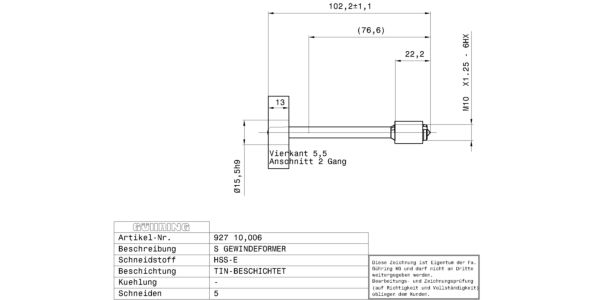

Fluteless machine taps for ISO metric fine threads M10 x 1,25 / 6HX / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / TiN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.0330 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: TiN Discount group: 103 Type: 927 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: MF Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 10.006 Weight: 0.033 No of cutting edges: 5 Total length: 100.000 Thread length: 20.000 Groove length: 31.000 Usable length: 39.000 Norm 2: DIN 2184-1 Wrench opening 1: 5.500 Core hole Ø: 9.40 Shank Ø: 7.000 Nominal dimension thread: M10 x 1,25 Pitch: 1.250 External Ø: 10.070 Reach length: 77.000 Statistical goods number: 82074010

Brand

Guhring
