Guhring Fluteless taps with lubrication flutes TiN Coated 1.5 Pitch

Product Code: 927 18,007

$539.48$490.44 Ex. GST

Product Code: 927 18,007 SKU 927 18,007 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps with lubrication flutes TiN Coated 1.5 Pitch

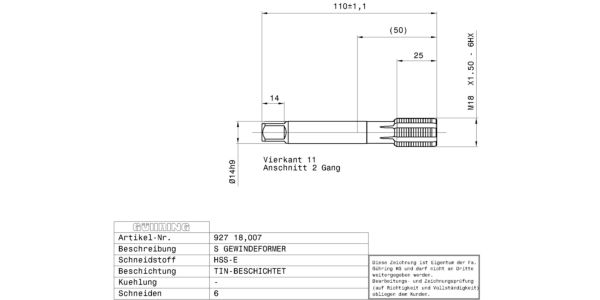

Guhring Fluteless taps with lubrication flutes TiN Coated 1.5 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric fine threads M18 x 1,5 / 6HX / 3xD / ~DIN 374 / DIN 2174 / HSS-E / TiN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.1380 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: TiN Discount group: 103 Type: 927 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: MF Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 18.007 Weight: 0.138 No of cutting edges: 6 Total length: 110.000 Thread length: 25.000 Groove length: 36.000 Usable length: 44.000 Norm 2: DIN 2174 Wrench opening 1: 11.000 Neck Ø: 13.800 Core hole Ø: 17.30 Shank Ø: 14.000 Nominal dimension thread: M18 x 1,5 Pitch: 1.500 External Ø: 18.090 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
