Guhring Fluteless taps with lubrication flutes TiN Coated 1.5 Pitch

Product Code: 927 12,007

$312.81$284.37 Ex. GST

Product Code: 927 12,007 SKU 927 12,007 Category CUTTING TOOLS (HSS & Carbide)

Guhring Fluteless taps with lubrication flutes TiN Coated 1.5 Pitch

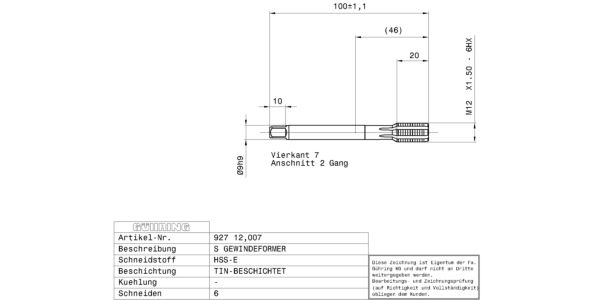

Guhring Fluteless taps with lubrication flutes TiN Coated 1.5 Pitch - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Fluteless machine taps for ISO metric fine threads M12 x 1,5 / 6HX / 3xD / ~DIN 374 / DIN 2174 / HSS-E / TiN / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand

Additional information

Weight	0.0560 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: TiN Discount group: 103 Type: 927 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: MF Tolerance class thread: 6HX Hole type: through-, blind hole Groove: with oil grooves Chamfer lead length: 2-3 Code no.: 12.007 Weight: 0.056 No of cutting edges: 6 Total length: 100.000 Thread length: 20.000 Groove length: 31.000 Usable length: 40.000 Norm 2: DIN 2174 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 11.30 Shank Ø: 9.000 Nominal dimension thread: M12 x 1,5 Pitch: 1.500 External Ø: 12.080 Reach length: 46.000 Statistical goods number: 82074010

Brand

Guhring
