Guhring G 3/8 BSP GunNose Tap HSS-E Yellow band

Product Code: 962 16,662

$190.44$173.13 Ex. GST

Product Code: 962 16,662 SKU 962 16,662 Category CUTTING TOOLS (HSS & Carbide)

Guhring G 3/8 BSP GunNose Tap HSS-E Yellow band

Guhring G 3/8 BSP GunNose Tap HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps f. BSP-threads G3/8 / 3xD / DIN 5156 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0950 kg
Dimensions
barcode

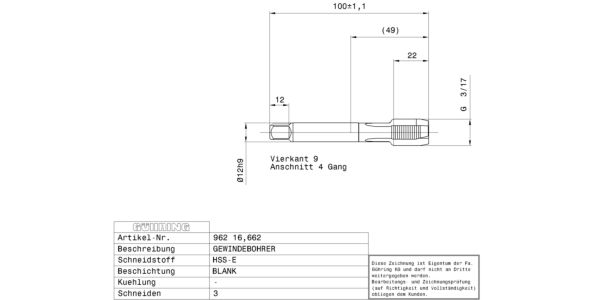

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 5156 Surface: bright Discount group: 103 Type: 962 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: yellow ring Threads: BSP Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 16.662 Weight: 0.095 No of cutting edges: 3 Total length: 100.000 Thread length: 22.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 9.000 Neck Ø: 11.800 Core hole Ø: 15.25 Shank Ø: 12.000 Nominal dimension thread: G3/8 Pitch: 1.337 External Ø: 16.740 Pitch thread/inch: 19.000 Reach length: 49.000 Statistical goods number: 82074010

Brand

Guhring
