Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring Gun Nose Tap PM HSS-E TiN Coat Red/Blue Band

Guhring Gun Nose Tap PM HSS-E TiN Coat Red/Blue Band

Product Code: 57 5,000

$84.94$77.22 Ex. GST

Product Code: 57 5,000 SKU 57 5,000 Category CUTTING TOOLS (HSS & Carbide)

Guhring Gun Nose Tap PM HSS-E TiN Coat Red/Blue Band

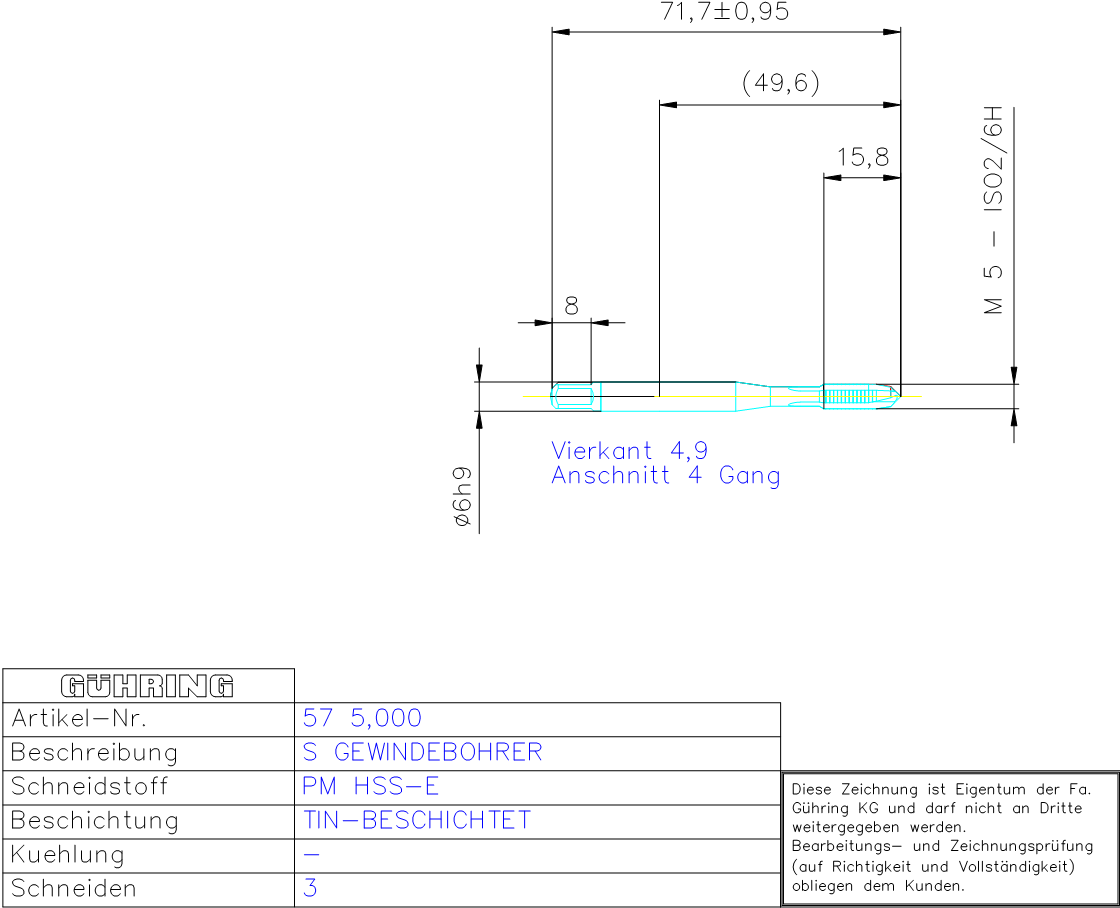

Guhring Gun Nose Tap PM HSS-E TiN Coat Red/Blue Band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for ISO metric threads M5 / ISO2/6H / 3xD / DIN 371 / DIN 2184-1 / HSS-E-PM / TiN / Type: H / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0140 kg
Dimensions
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 371 Surface: TiN Discount group: 103 Type: 57 Cutting direction: right-hand Type: H Material: HSS-E-PM Additional information: Internal threading Form: B Coloured ring: red ring Threads: M Tolerance class thread: ISO2/6H Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 5.000 Weight: 0.014 No of cutting edges: 3 Total length: 70.000 Thread length: 14.000 Groove length: 21.000 Usable length: 25.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Neck Ø: 4.000 Core hole Ø: 4.20 Shank Ø: 6.000 Nominal dimension thread: M5 Pitch: 0.800 External Ø: 5.060 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
