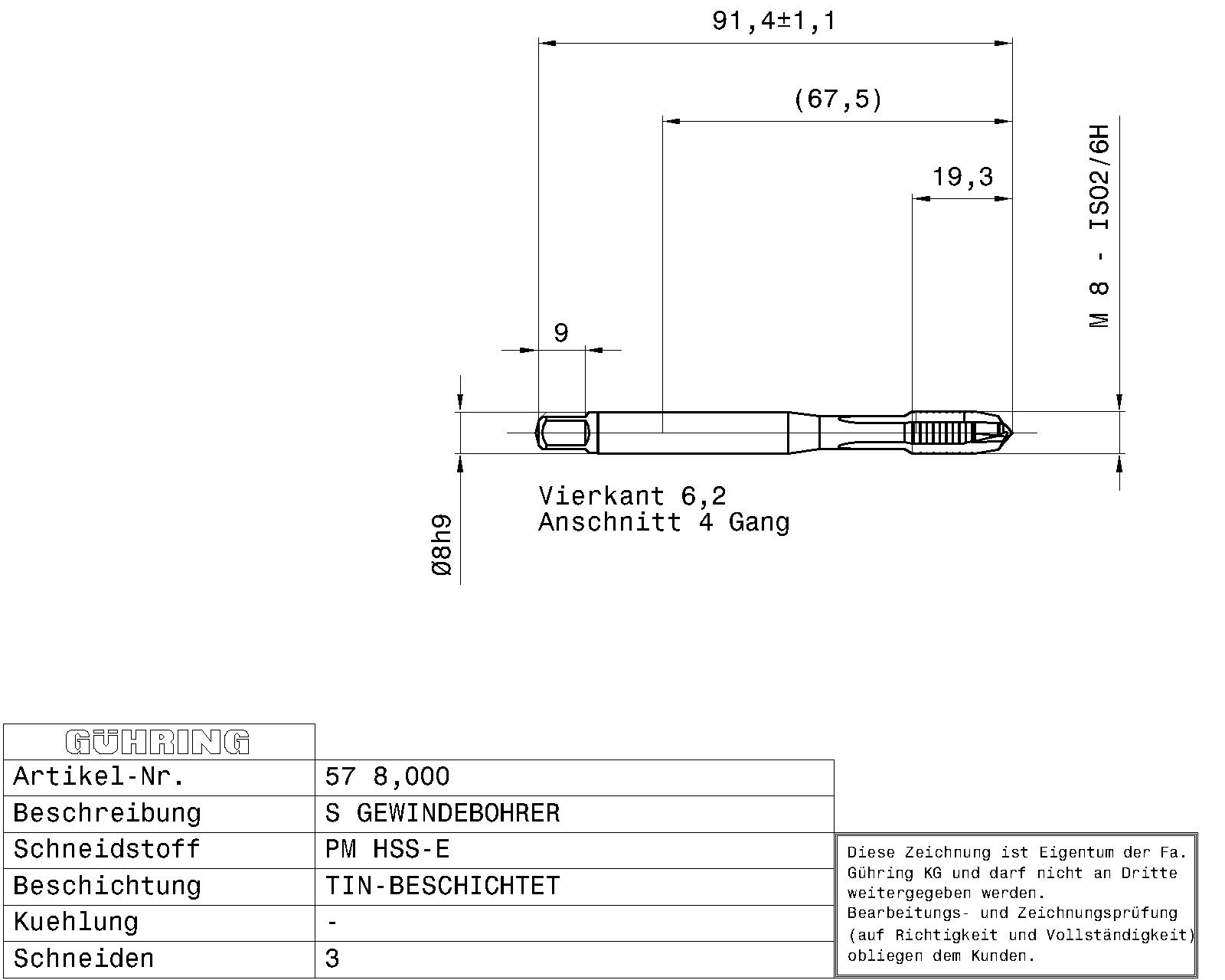

Guhring Gun Nose Tap PM HSS-E TiN Coat Red/Blue Band

Connection code machine side: straight shank
Internal cooling: without
Norm: DIN 371
Surface: TiN
Discount group: 103
Type: 57
Cutting direction: right-hand
Type: H
Material: HSS-E-PM
Additional information: Internal threading
Form: B
Coloured ring: red ring
Threads: M
Tolerance class thread: ISO2/6H
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 8.000
Weight: 0.032
No of cutting edges: 3
Total length: 90.000
Thread length: 17.000
Groove length: 31.000
Usable length: 35.000
Norm 2: DIN 2184-1
Wrench opening 1: 6.200
Neck Ø: 6.300
Core hole Ø: 6.80
Shank Ø: 8.000
Nominal dimension thread: M8
Pitch: 1.250
External Ø: 8.070
Reach length: 68.000
Statistical goods number: 82074010
