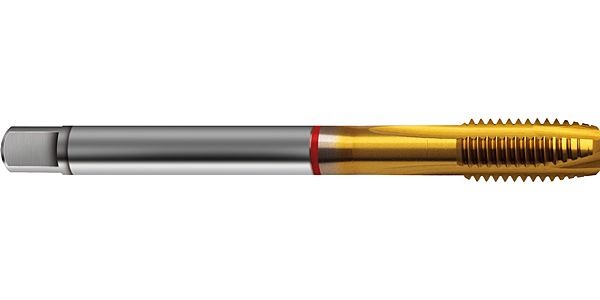

Guhring Gun Nose Tap PM HSS-E TiN Coat Red/Blue Band

Connection Code Machine Side: straight shank
Internal Cooling: without
Norm: FROM 376
Surface: Believe
Discount Group: 103
Type: 58
Cutting Direction: right-hand
Type: H
Material: HSS-E-PM
Additional Information: Internal threading
Form: B
Coloured Ring: red ring
Threads: M
Tolerance Class Thread: ISO2/6H
Hole Type: through hole
Groove: straight-fluted cutting edges
Chamfer Lead Length: 3.5-5.5
Code No.: 12.000
Weight: 0.057
No. of Cutting Edges: 4

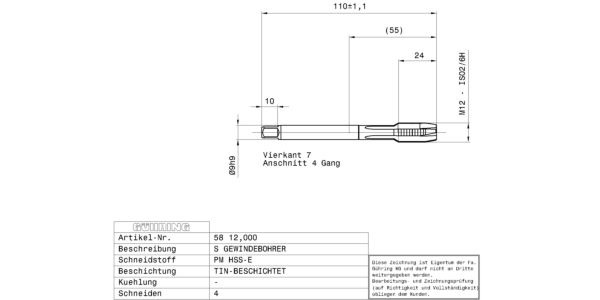

Total Length: 110.000
Thread Length: 24.000
Groove Length: 45.000
Usable Length: 49.000
Norm 2: DIN 2184-1
Wrench Opening 1: 7.000
Neck Ø: 8.800
Core Hole Ø: 10.20
Shank Ø: 9.000
Nominal Dimension Thread: M12
Pitch: 1.750
External Ø: 12.080
Reach Length: 55.000
Statistical Goods Number: 82074010
