Guhring Hand Reamers HSS H7

Description

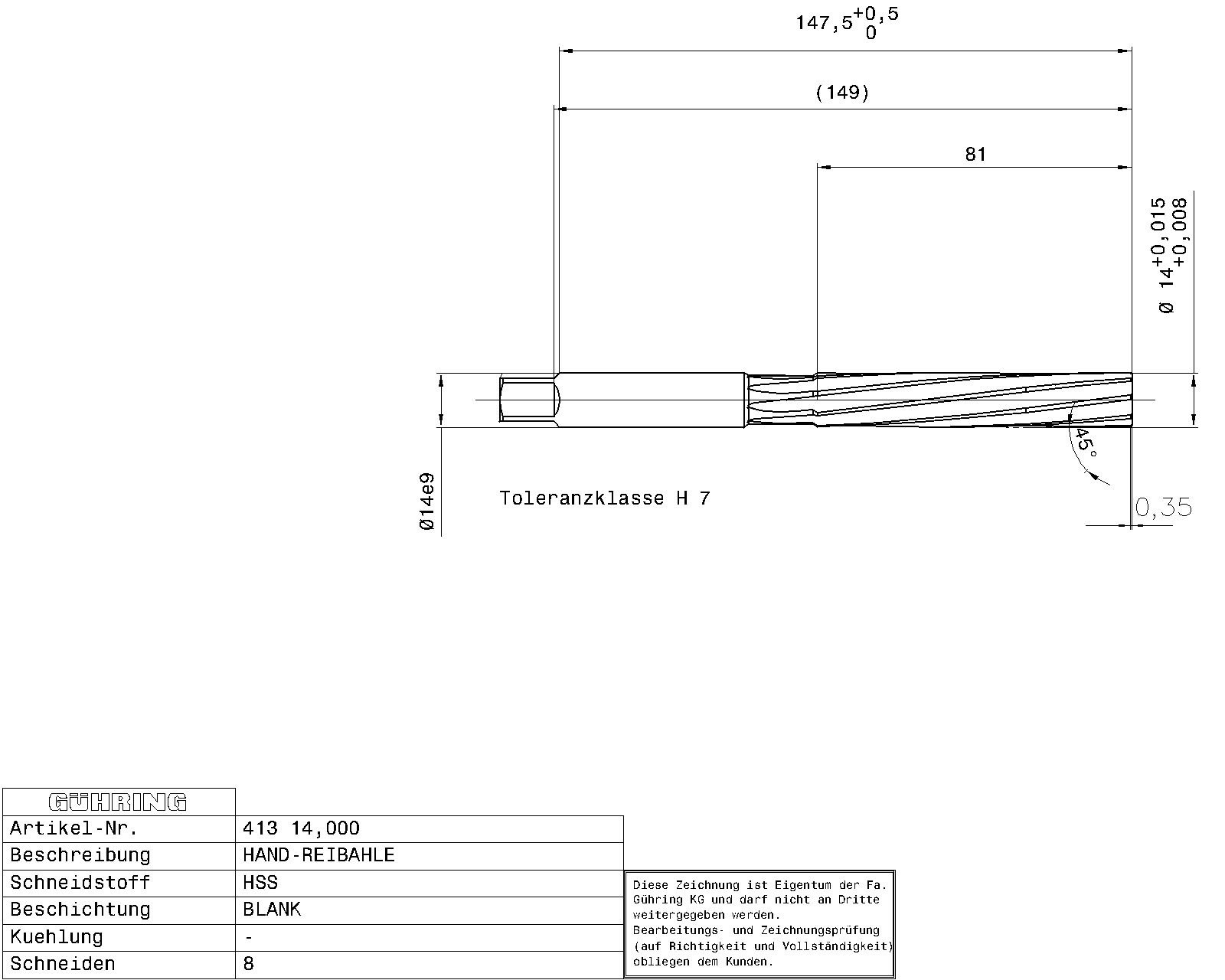

Hand reamers / Ø 14.000 mm / Tolerance zone: H7 / DIN 206 / HSS / bright / Form: B / Cutting direction: right-hand /
Execution: with square to DIN 10 • ≤ Ø 3.75 mm with external centres on both ends • > Ø 3.75 mm with internal centres on both ends • ≤ 1.75 mm to company standard

Additional information

Weight	0.1650 kg
Dimensions
barcode
Additional Information	Connection Code Machine Side: straight shank Nominal Ø Tolerance Field: H7 Internal Cooling: without Norm: DIN 206 Surface: bright Discount Group: 105 Type: 413 Cutting Direction: right-hand Material: HSS Form: B Hole Type: through hole Groove: left fluted Spacing: U Code No.: 14.000 Weight: 0.165 No. of Cutting Edges: 8 Total Length: 163.000 Groove Length: 99.000 Usable Length: 100.000 Wrench Opening 1: 11.000 Neck Ø: 12.500 Shank Ø: 14.000 Nominal Ø mm: 14.000 Cutting Edge Length: 81.000 Smallest Ø: 14.000 Statistical Goods Number: 82076030
