Guhring HSCo spot drill 90° fire coated

Description

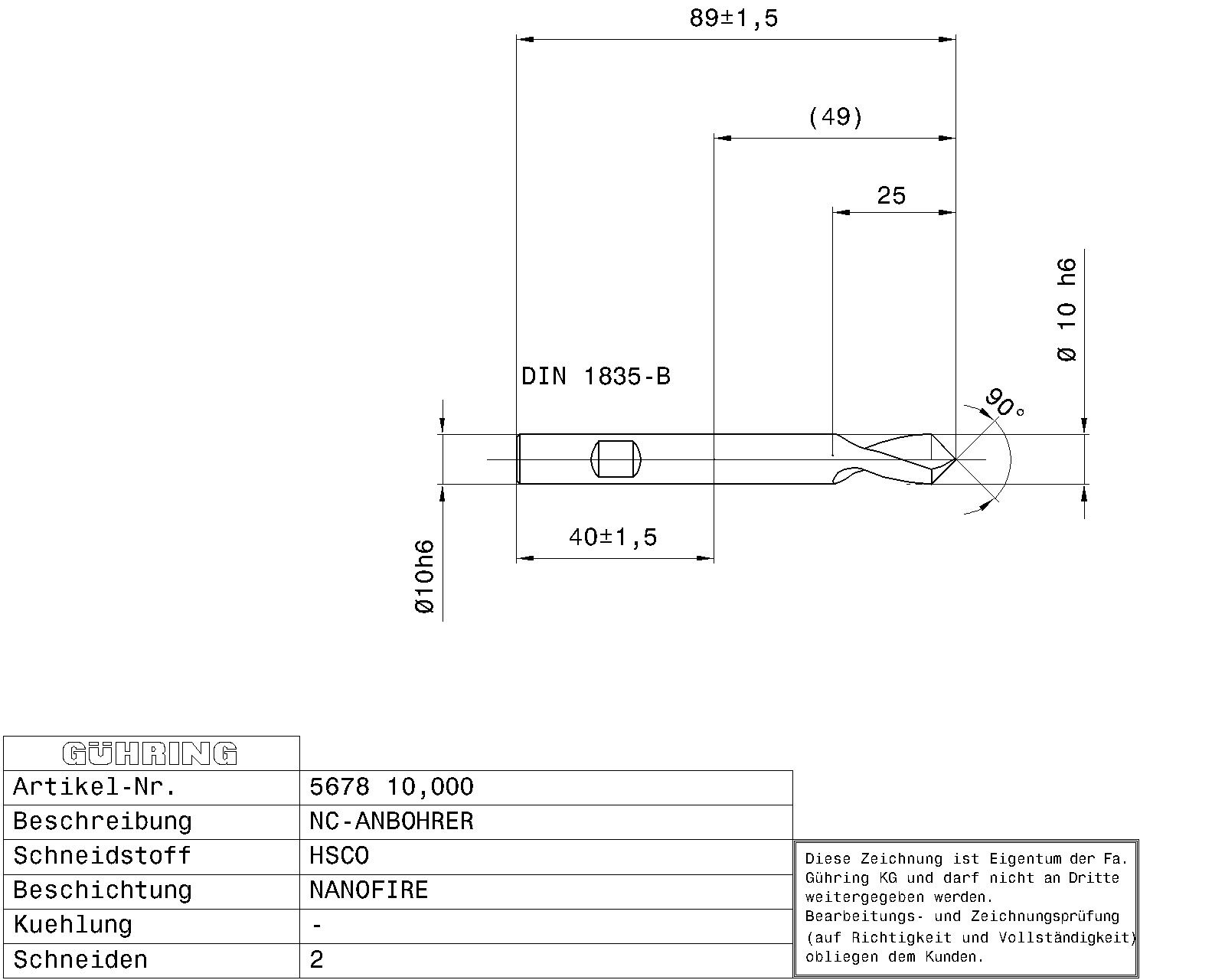

NC spotting drills 90° HSCO / Ø 10.000 mm h6 / DIN 1835-B / Company std. / Surface: nanoFIRE / Type: N / Cutting direction: right-hand / relieved cone 90°
Execution: relieved cone • only suitable for spotting • ≥ Ø 6.0 mm with driving face to DIN 1835-B • inch dimensions are without clamping surface • Co-alloyed high speed steel • increased wear resistance

Additional information

Weight	0.053 kg
Dimensions
barcode	9056780100000
Additional Information	Point grinding: relieved cone Connection code machine side: DIN 1835-B Nominal Ø tolerance field: h6 Internal cooling: without Norm: Company std. Surface: nanoFIRE Discount group: 159 Type: 5678 Cutting direction: right-hand Type: N Point angle: 90 Material: HSCO Code no.: 10.000 Weight: 0.053 No of cutting edges: 2 Total length: 89.000 Groove length: 25.000 Usable length: 20.000 Shank Ø: 10.000 Shank length: 40.000 Nominal Ø mm: 10.000 Holder, machine side: DIN 1835-B Statistical goods number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
