$923.42$839.47 Ex. GST

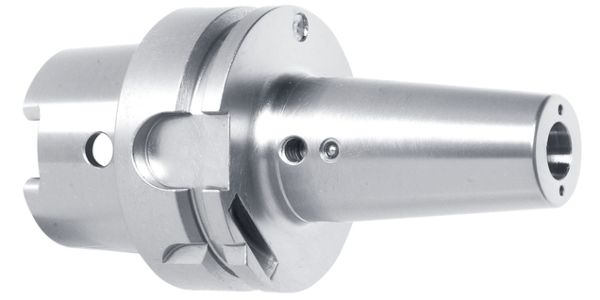

Shrink fit chucks / HSK-A 100 / d2 20.000 mm / # 4755 / M16 x 1 / Company std. / bright / Execution: HSK-A according to ISO 12164-1 / DIN 69893-1 • dimensions according to DIN 69882-8 • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • concentricity < 3 µm
l1 from 120 mm: = 4 µm • balancing thread 4xM6/6xM6 • optimised cooling lubrication for tools without internal coolant • good chip evacuation and increased process reliability • coolant ducts: d1 = 6 – 10 mm with two coolant ducts, d1 = 12 – 32 mm with four coolant ducts
| Weight | 2.5000 kg |
|---|---|
| Dimensions | |
| barcode | |
| Additional Information | Connection code machine side: HSK-A |
