$1,568.49$1,425.90 Ex. GST

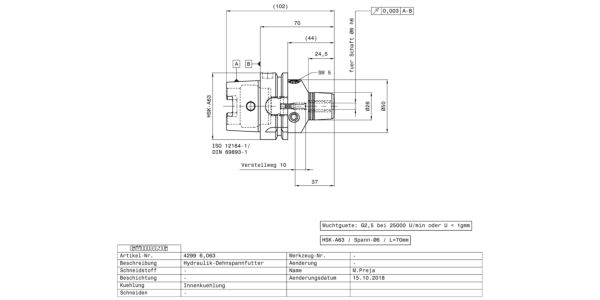

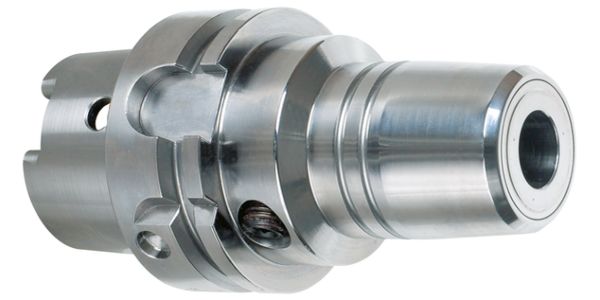

Hydraulic chucks / HSK-A 63 / d2 8.000 mm / # 4299 / DIN 69882-7 / bright / Execution: HSK-A according to ISO 12164-1 / DIN 69893-1 • dimensions according to DIN 69882-7 • balancing quality: G 2.5 / 25,000 rpm
or rev. < 1 gmm • for tool shanks d1 h6 • axial length adjustment • concentricity < 3 µm
l1 from 120 mm: max. 4 µm,
l1 from 150/160 mm: max. 5 µm,
l1 from 200 mm: max. 7 µm
| Weight | 1.1000 kg |
|---|---|
| barcode | |
| Additional Information | Connection code machine side: HSK-A |
