Guhring HSS Tip Coated Drill 13/32″

Product Code: 9651 10,320

$34.90$31.73 Ex. GST

Product Code: 9651 10,320 SKU 9651 10,320 Category
Guhring HSS Tip Coated Drill 13/32"

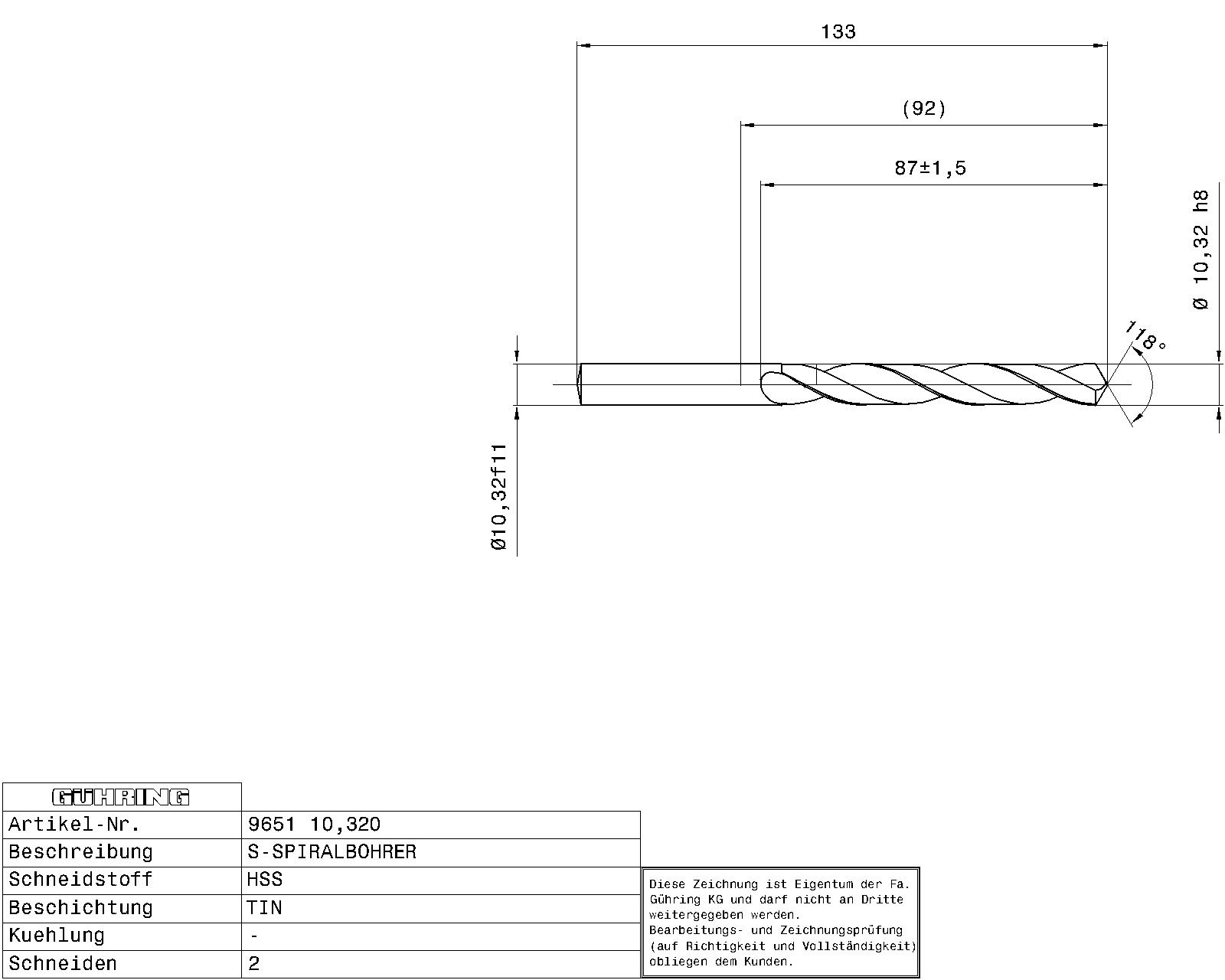

Guhring HSS Tip Coated Drill 13/32" - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Short HSS twist drill / Ø 10.320 mm h8 / DIN 338 / Surface: TiN / Cutting direction: right / Conical grinding 118°
Design: Thinning ≥ Ø 1.000 mm • Conical grinding • Head coating
Application: Gray cast iron, malleable cast iron, spheroidal cast iron • Steel and cast steel (alloyed and unalloyed) • Sintered iron and graphite

Additional information

Weight 0.0660 kg
Dimensions
barcode
Additional Information

Point bevel: Conical grinding
Machine-side mounting type: Cylindrical shaft
Ø-pointing: 1,000
Nominal diameter tolerance field: h8
Internal cooling: Without
Standard: DIN 338
Surface: TiN
Discount group: 159
Variety: 9651
Cutting direction: Right
Type: N
Tip angle: 118
Material: HSS
Additional information: Head-coated
Code number: 10,320
Weight: 0.066
Number of cutting edges: 2
Total length: 133,000
Groove length: 87,000
Length of use: 73,000
Shaft diameter: 10,320
Shaft length: 46,000
Nominal diameter mm: 10,320
Nominal diameter fractional: 13/32
Statistical commodity code: 82075060

Brand

Guhring
