Guhring HSS Tip Coated Drill

Product Code: 9651 12,800

$69.93$63.57 Ex. GST

Product Code: 9651 12,800 SKU 9651 12,800 Category
Guhring HSS Tip Coated Drill

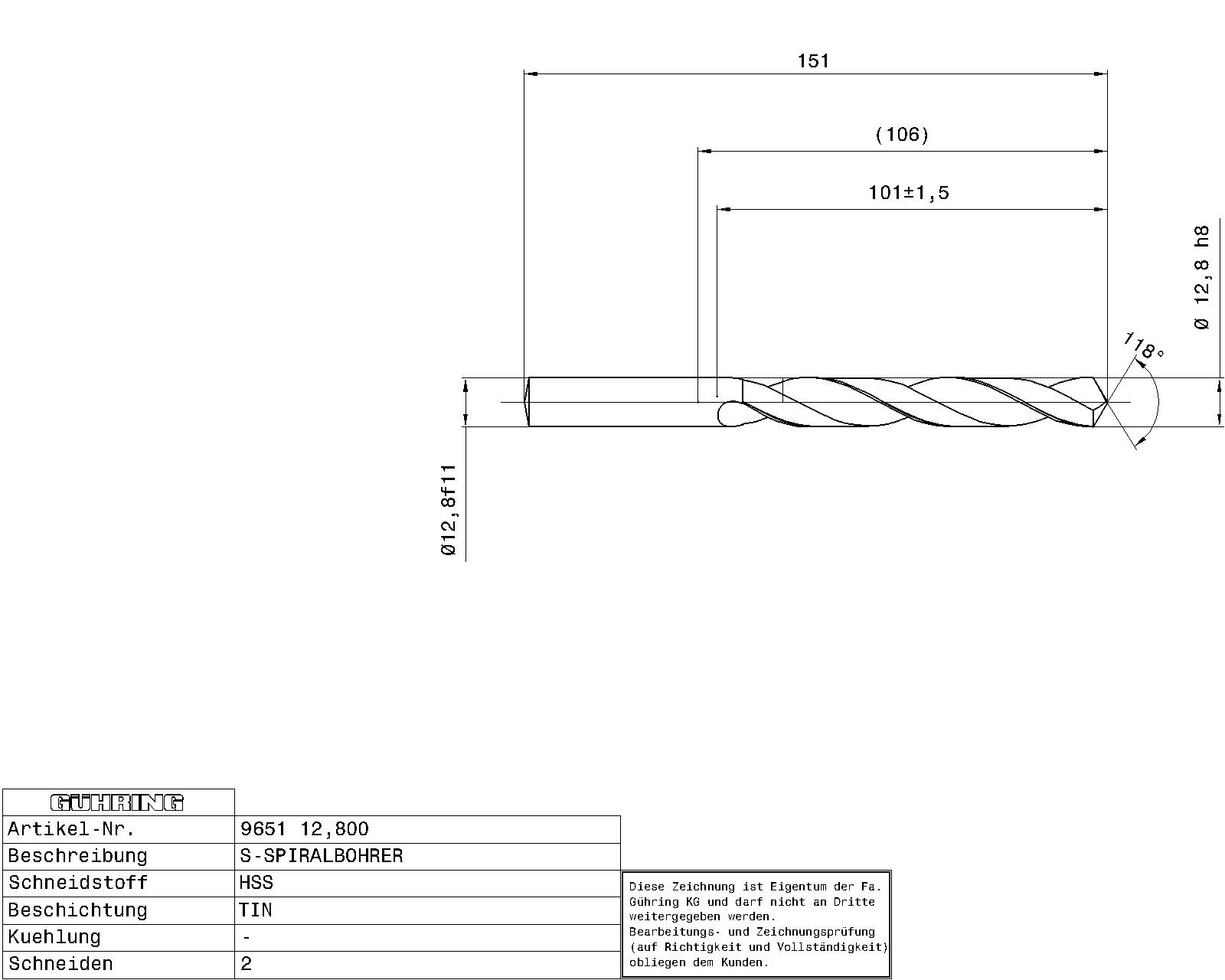

Guhring HSS Tip Coated Drill - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills short HSS / Ø 12.800 mm h8 / DIN 338 / Surface: TiN / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone • tip coating
Application: grey cast iron, malleable and spheroidal iron • alloyed/unalloyed steel and cast steel • sintered powder metal and graphite

Additional information

Weight 0.1120 kg
Dimensions
barcode
Additional Information

Point grinding: Relieved cone
Connection code machine side: Straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h8
Internal cooling: Without
Norm: DIN 338
Surface: TiN
Discount group: 159
Type: 9651
Cutting direction: Right-hand
Type: N
Point angle: 118
Material: HSS
Additional information: Tip coated
Code no.: 12.800
Weight: 0.112
No of cutting edges: 2
Total length: 151.000
Groove length: 101.000
Usable length: 84.000
Shank Ø: 12.800
Shank length: 50.000
Nominal Ø mm: 12.800
Statistical goods number: 82075060

Brand

Guhring
