Guhring HSS Tip Coated Drill

Description

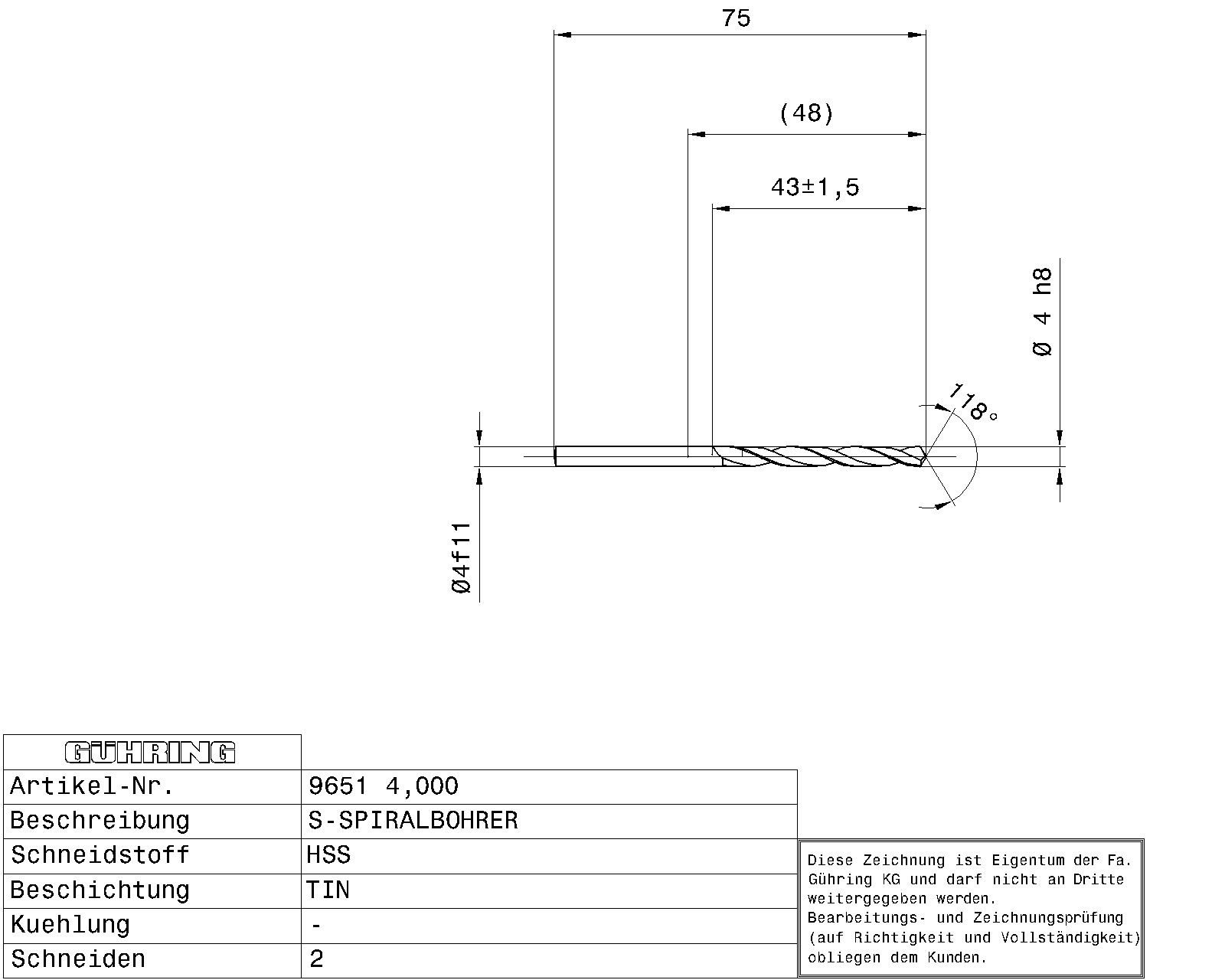

Twist drill short HSS / Ø 4,000 mm h8 / DIN 338 / Surface: TiN / Cutting direction: right / Conical grinding 118°
Design: Thinning ≥ Ø 1,000 mm • Conical grinding • Head coating
Application: Gray cast iron, malleable cast iron, spheroidal cast iron • Steel and cast steel (alloyed and unalloyed) • Sintered iron and graphite

Additional information

Weight	0.0060 kg
Dimensions
barcode
Additional Information	Point bevel: conical grinding Machine-side mounting type: cylindrical shaft Ø-pointing: 1,000 Nominal diameter tolerance field: h8 Internal cooling: without Standard: DIN 338 Surface: TiN Discount group: 159 Variety: 9651 Cutting direction: right Type: N Tip angle: 118 Material: HSS Additional information: head-coated Code number: 4,000 Weight: 0.006 Number of cutting edges: 2 Total length: 75,000 Groove length: 43,000 Length of use: 37,000 Shaft diameter: 4,000 Shaft length: 32,000 Nominal diameter mm: 4,000 Statistical commodity code: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
