Guhring HSS Tip Coated Drill

Product Code: 9651 4,200

$7.14$6.49 Ex. GST

Product Code: 9651 4,200 SKU 9651 4,200 Category
Guhring HSS Tip Coated Drill
Guhring HSS Tip Coated Drill - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

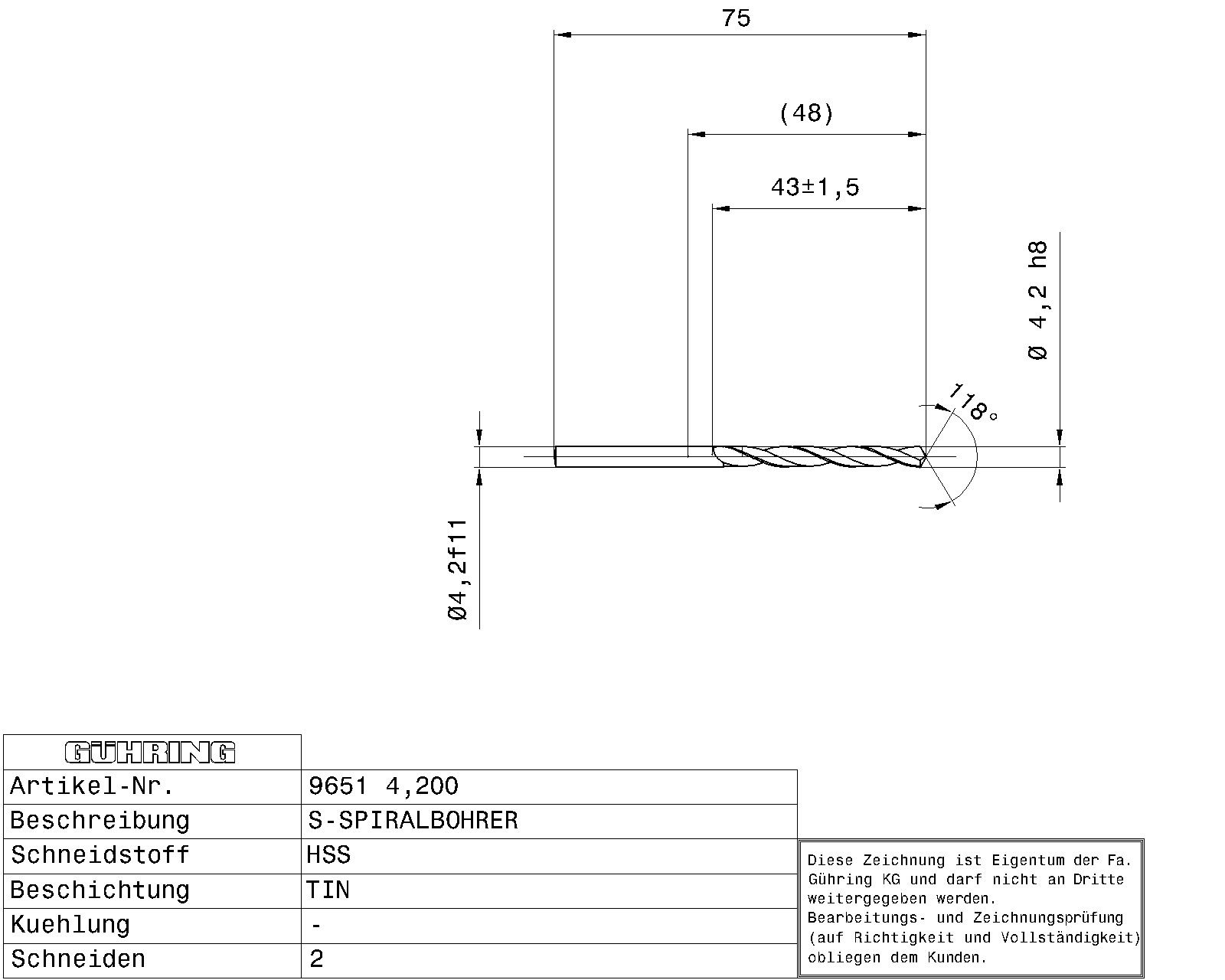

Short HSS twist drill / Ø 4.200 mm h8 / DIN 338 / Surface: TiN / Cutting direction: right / Conical grinding 118°
Design: Thinning ≥ Ø 1.000 mm • Conical grinding • Head coating
Application: Gray cast iron, malleable cast iron, spheroidal cast iron • Steel and cast steel (alloyed and unalloyed) • Sintered iron and graphite

Additional information

Weight 0.0060 kg
Dimensions
barcode
Additional Information

Point bevel: conical grinding
Machine-side mounting type: cylindrical shaft
Ø-pointing: 1,000
Nominal diameter tolerance field: h8
Internal cooling: without
Standard: DIN 338
Surface: TiN
Discount group: 159
Variety: 9651
Cutting direction: right
Type: N
Tip angle: 118
Material: HSS
Additional information: head-coated
Code number: 4,200
Weight: 0.006
Number of cutting edges: 2
Total length: 75,000
Groove length: 43,000
Length of use: 37,000
Shaft diameter: 4,200
Shaft length: 32,000
Nominal diameter mm: 4,200
Statistical commodity code: 82075060

Brand

Guhring
