Guhring HSS Tip Coated Drill

Description

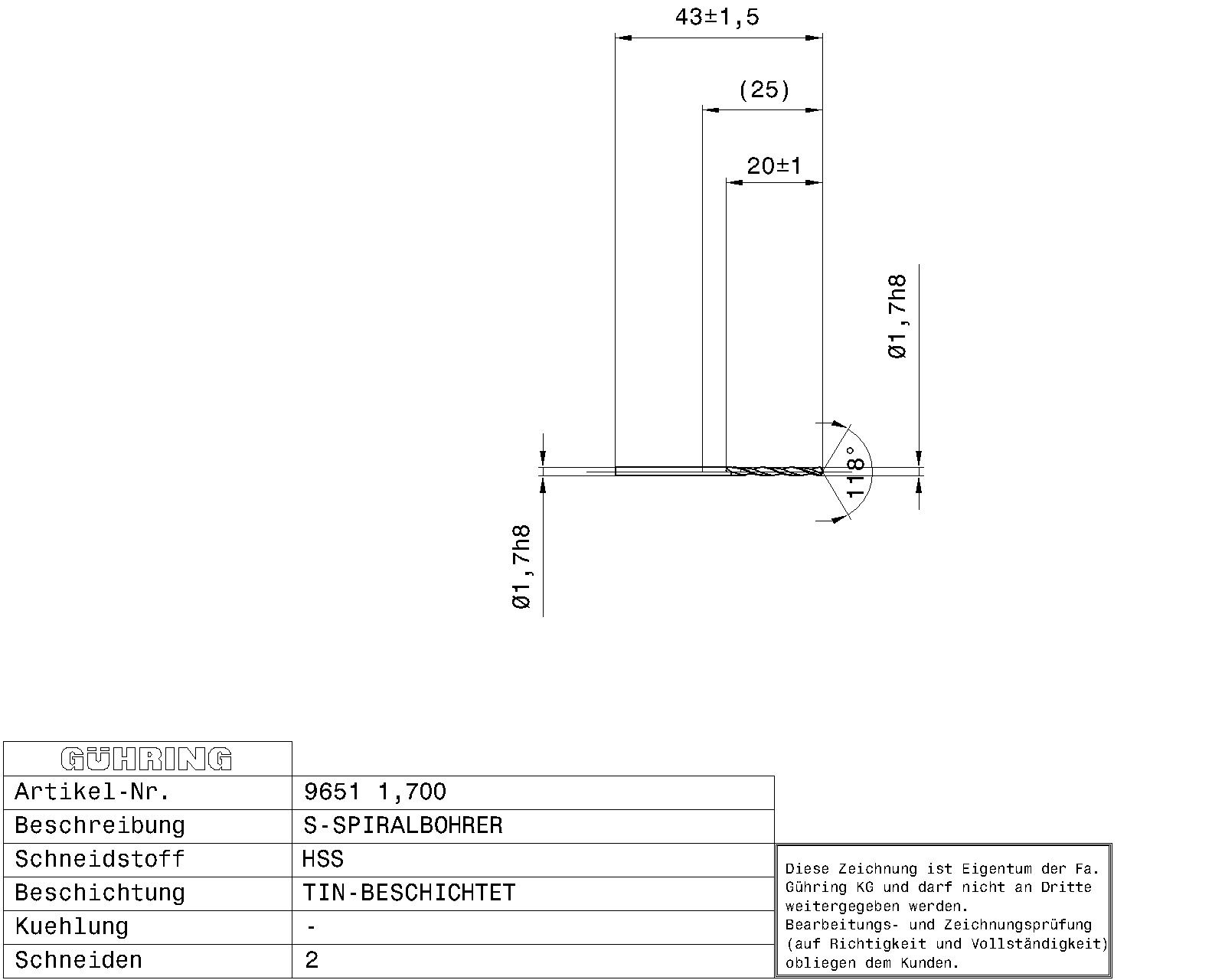

Short HSS twist drill / Ø 1,700 mm h8 / DIN 338 / Surface: TiN / Cutting direction: right / Conical grinding 118°
Design: Thinning ≥ Ø 1,000 mm • Conical grinding • Head coating
Application: Gray cast iron, malleable cast iron, spheroidal cast iron • Steel and cast steel (alloyed and unalloyed) • Sintered iron and graphite

Additional information

Weight	0.0010 kg
Dimensions
barcode
Additional Information	Point bevel: conical grinding Machine-side mounting type: cylindrical shaft Ø-pointing: 1,000 Nominal diameter tolerance field: h8 Internal cooling: without Standard: DIN 338 Surface: TiN Discount group: 159 Variety: 9651 Cutting direction: right Type: N Tip angle: 118 Material: HSS Additional information: head-coated Code number: 1,700 Weight: 0.001 Number of cutting edges: 2 Total length: 43,000 Groove length: 20,000 Length of use: 17,000 Shaft diameter: 1,700 Shaft length: 23,000 Nominal diameter mm: 1,700 Statistical commodity code: 82075060
