Guhring Jobber drill HSCO 1/8

Product Code: 5523 3,170

$9.87$8.97 Ex. GST

Product Code: 5523 3,170 SKU 5523 3,170 Category
Guhring Jobber drill HSCO 1/8

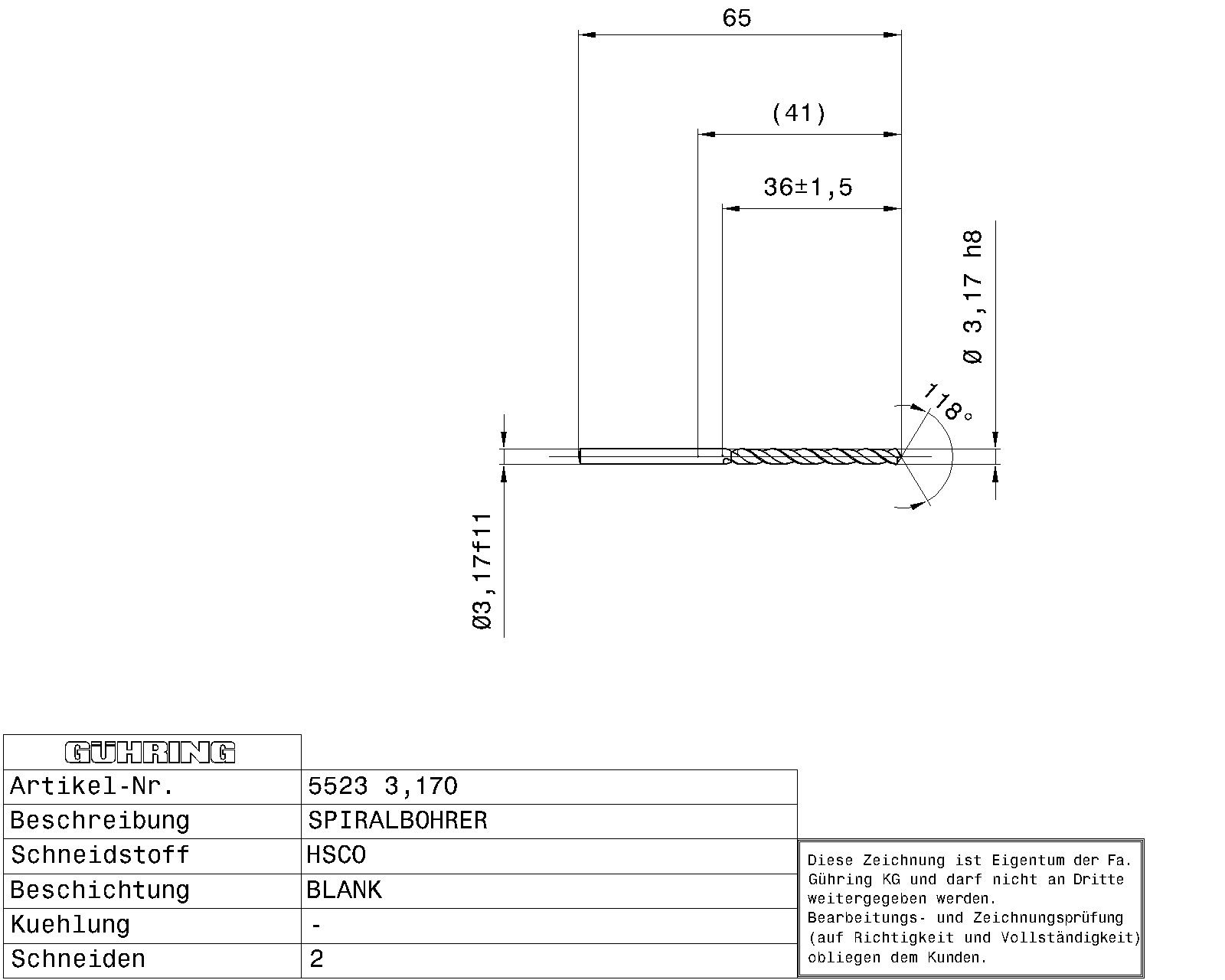

Guhring Jobber drill HSCO 1/8 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills short HSCO / Ø 3.170 mm h8 / ~5xD / DIN 338 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight 0.0030 kg
barcode
Additional Information

Point Grinding: Facet Point Grinding
Connection Code Machine Side: Straight Shank
Ø-Thinning: 1.000
Nominal Ø Tolerance Field: h8
Internal Cooling: Without
Norm: DIN 338
Surface: Bright
Discount Group: 159
Type: 5523
Cutting Direction: Right-Hand
Type: GU 500 DZ
Point Angle: 118
Material: HSCO
Code No.: 3.170
Weight: 0.003
No. of Cutting Edges: 2
Total Length: 65.000
Groove Length: 36.000
Usable Length: 33.000
Shank Ø: 3.170
Shank Length: 29.000
Nominal Ø: 3.170
Nominal Ø Fractional: 1/8
Statistical Goods Number: 82075060

Brand

Guhring
