Guhring Jobber drill HSCO

Product Code: 5523 12,000

$67.03$60.94 Ex. GST

Product Code: 5523 12,000 SKU 5523 12,000 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

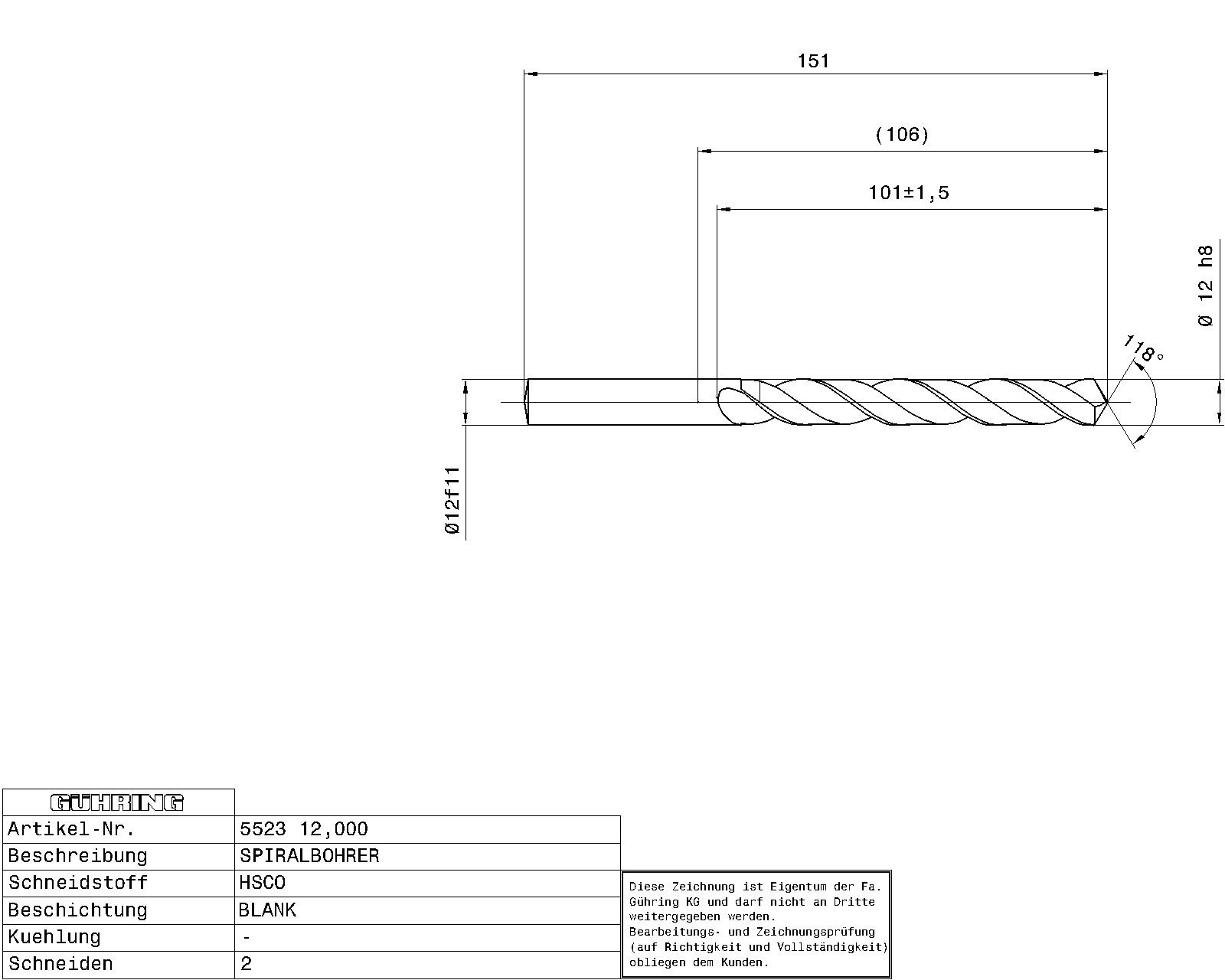

Twist drills short HSCO / Ø 12.000 mm h8 / ~5xD / DIN 338 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight 0.0710 kg
Dimensions
barcode
Additional Information

Point grinding: Facet point grinding
Connection code machine side: Straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h8
Internal cooling: Without
Norm: DIN 338
Surface: Bright
Discount group: 159
Type: 5523
Cutting direction: Right-hand
Type: GU 500 DZ
Point angle: 118
Material: HSCO
Code no.: 12.000
Weight: 0.071
No of cutting edges: 2
Total length: 151.000
Groove length: 101.000
Usable length: 90.000
Shank Ø: 12.000
Shank length: 50.000
Nominal Ø mm: 12.000
Statistical goods number: 82075060

Brand

Guhring
