Guhring Jobber drill HSCO 21/64

Product Code: 5523 8,330

$30.50$27.73 Ex. GST

Product Code: 5523 8,330 SKU 5523 8,330 Category
Guhring Jobber drill HSCO 21/64
Guhring Jobber drill HSCO 21/64 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

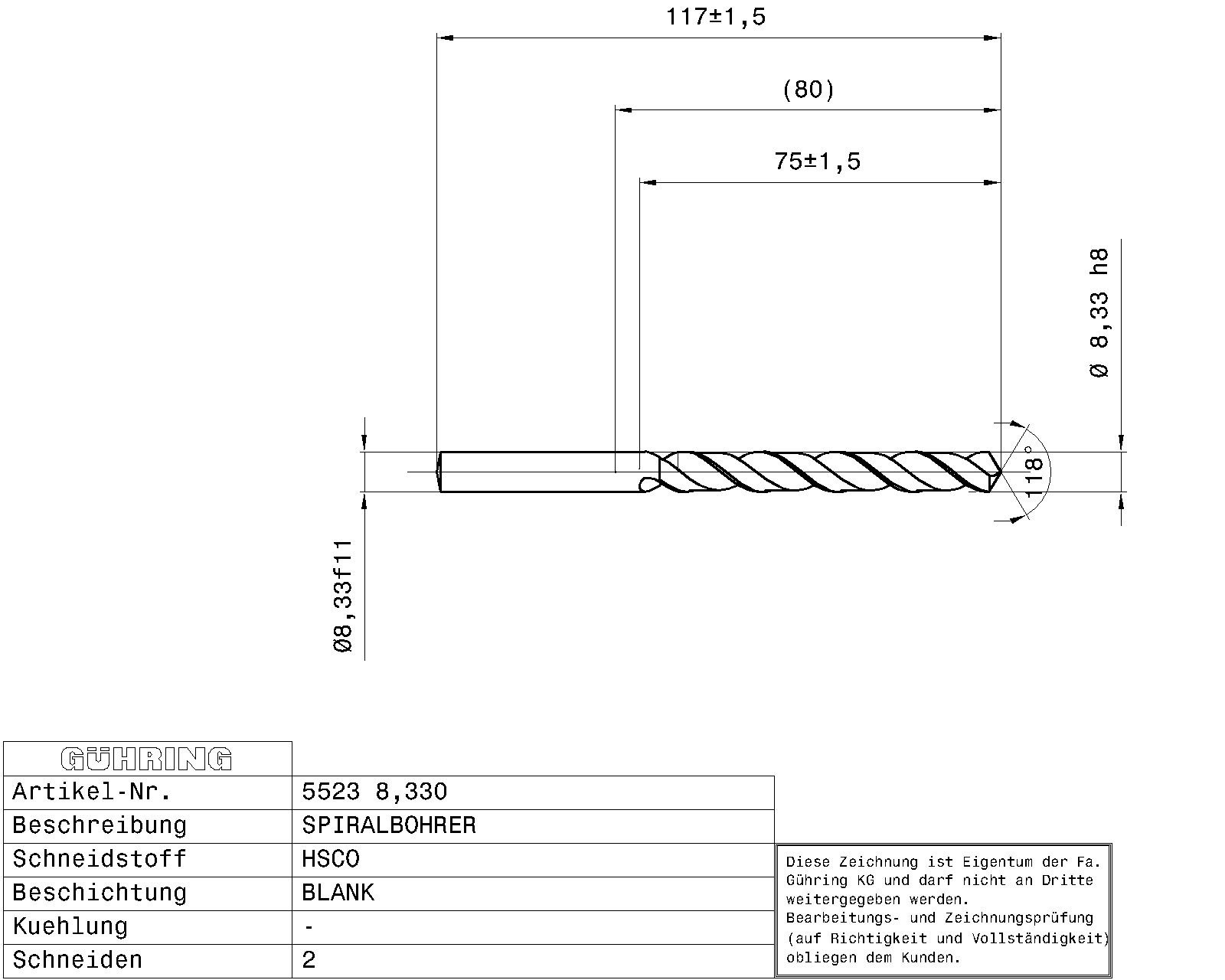

Twist drills short HSCO / Ø 8.330 mm h8 / ~5xD / DIN 338 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight 0.0270 kg
Dimensions
barcode
Additional Information

Point grinding: Facet point grinding
Connection code machine side: Straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h8
Internal cooling: Without
Norm: DIN 338
Surface: Bright
Discount group: 159
Type: 5523
Cutting direction: Right-hand
Type: GU 500 DZ
Point angle: 118
Material: HSCO
Code no.: 8.330
Weight: 0.027
No of cutting edges: 2
Total length: 117.000
Groove length: 75.000
Usable length: 67.000
Shank Ø: 8.330
Shank length: 42.000
Nominal Ø mm: 8.330
Nominal Ø fractional: 21/64
Statistical goods number: 82075060

Brand

Guhring
