Guhring Jobber drill HSCO 3/32

Description

Twist drills short HSCO / Ø 2.380 mm h8 / ~5xD / DIN 338 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight	0.0010 kg
Dimensions
barcode

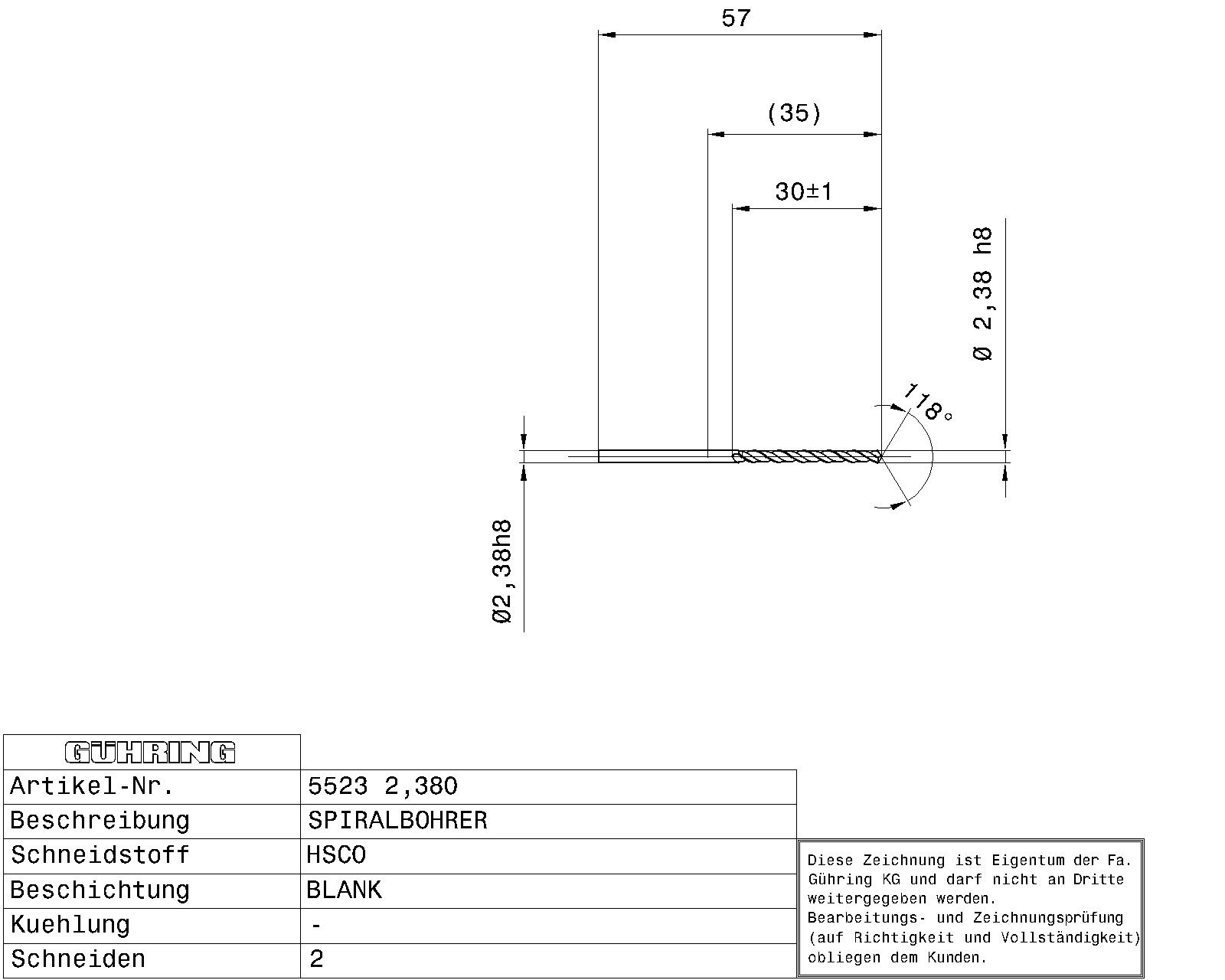

Additional Information	Point grinding: Facet point grinding Connection code machine side: Straight shank Ø-Thinning: 1.000 Nominal Ø tolerance field: h8 Internal cooling: Without Norm: DIN 338 Surface: Bright Discount group: 159 Type: 5523 Cutting direction: Right-hand Type: GU 500 DZ Point angle: 118 Material: HSCO Code no.: 2.380 Weight: 0.001 No of cutting edges: 2 Total length: 57.000 Groove length: 30.000 Usable length: 28.000 Shank Ø: 2.380 Shank length: 27.000 Nominal Ø mm: 2.380 Nominal Ø fractional: 3/32 Statistical goods number: 82075060
