Guhring Jobber drill HSCO 3/8

Product Code: 5523 9,520

$34.76$31.60 Ex. GST

Product Code: 5523 9,520 SKU 5523 9,520 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Twist drills short HSCO / Ø 9.520 mm h8 / ~5xD / DIN 338 / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 1.000 mm • facet point grind • Co-alloyed high speed steel • low feed force required • low torque required • for universal application
Application: alloyed/unalloyed steels up to 800 N/mm² • cold/hot work steels • antifriction bearing steels • non-ferrous metals • cast materials • stainless steels • plastics

Additional information

Weight 0.0640 kg

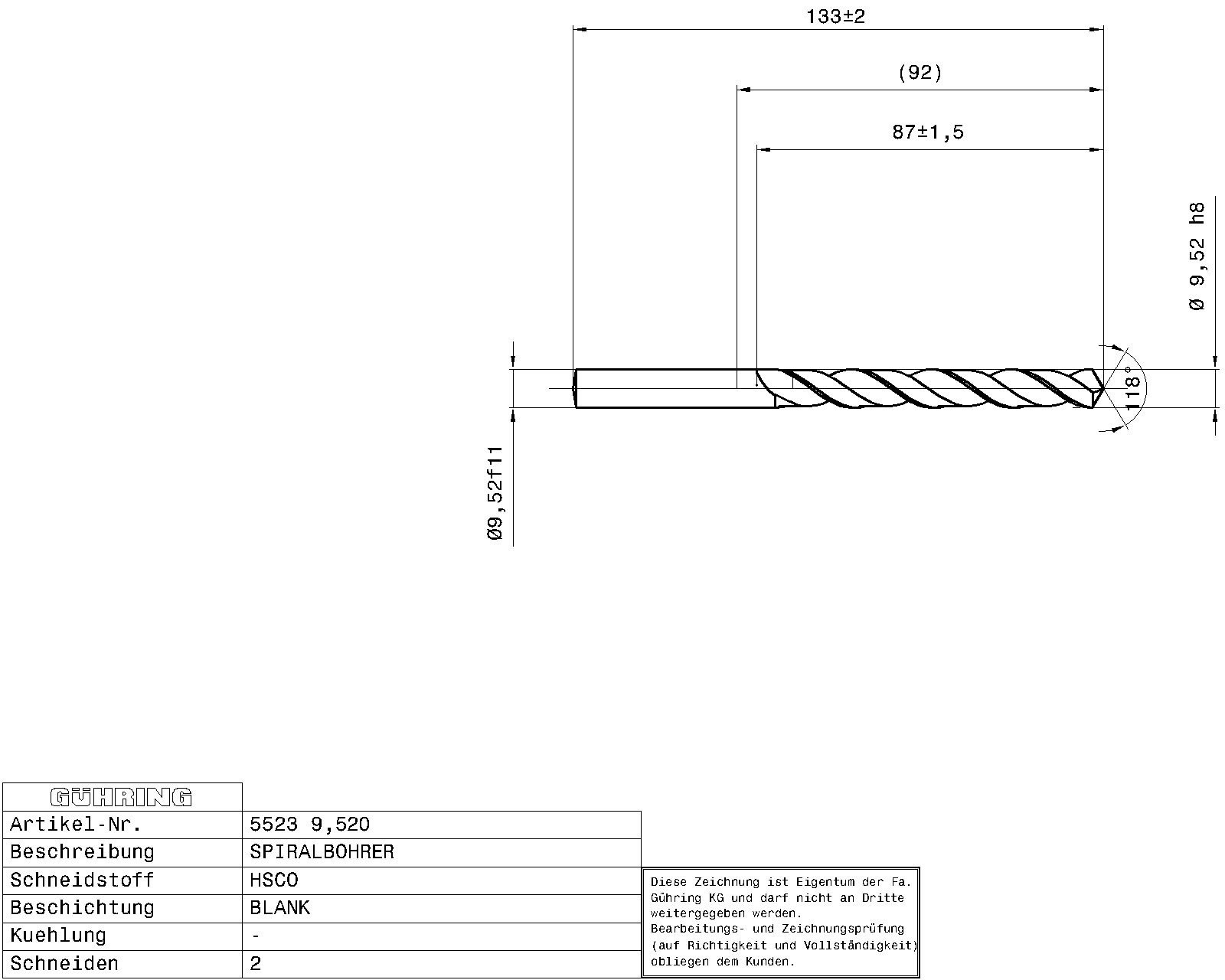

Dimensions
barcode
Additional Information

Point grinding: Facet point grinding
Connection code machine side: Straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h8
Internal cooling: Without
Norm: DIN 338
Surface: Bright
Discount group: 159
Type: 5523
Cutting direction: Right-hand
Type: GU 500 DZ
Point angle: 118
Material: HSCO
Code no.: 9.520
Weight: 0.064
No of cutting edges: 2
Total length: 133.000
Groove length: 87.000
Usable length: 78.000
Shank Ø: 9.520
Shank length: 46.000
Nominal Ø mm: 9.520
Nominal Ø fractional: 3/8
Statistical goods number: 82075060

Brand

Guhring
