Guhring Jobber drill HSS 17/64

Description

Twist drills short HSS / Ø 6.750 mm h8 / DIN 338 / Surface: steam tempered / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone
Application: grey cast iron, malleable and spheroidal iron • alloyed/unalloyed steel and cast steel • sintered powder metal, German silver and graphite

Additional information

Weight	0.0220 kg
Dimensions
barcode

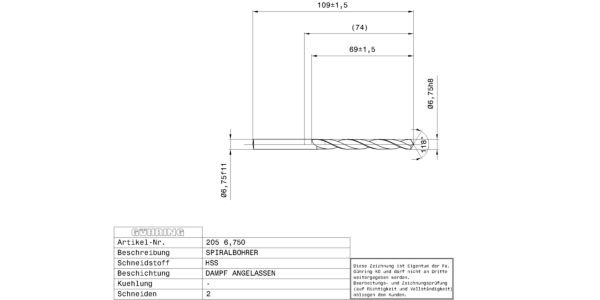

Additional Information	Point Grinding: Relieved Cone Connection Code (Machine Side): Straight Shank Ø-Thinning: 1.000 Nominal Ø Tolerance Field: h8 Internal Cooling: Without Norm: DIN 338 Surface: Steam Tempered Discount Group: 130 Type: 205 Cutting Direction: Right-Hand Type: N Point Angle: 118 Material: HSS Code No.: 6.750 Weight: 0.022 Number of Cutting Edges: 2 Total Length: 109.000 Groove Length: 69.000 Usable Length: 60.000 Shank Ø: 6.750 Shank Length: 40.000 Nominal Ø: 6.750 Nominal Ø Fractional: 17/64 Statistical Goods Number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
