Guhring Jobber drill HSS

Description

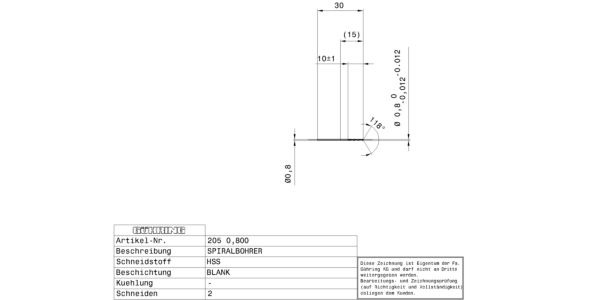

Twist drills short HSS / Ø 0.800 mm h8 / DIN 338 / Surface: bright / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone
Application: grey cast iron, malleable and spheroidal iron • alloyed/unalloyed steel and cast steel • sintered powder metal, German silver and graphite

Additional information

Weight	0.0010 kg
Dimensions
barcode
Additional Information	Point Grinding: relieved cone Connection Code Machine Side: straight shank Ø-Thinning: 1.000 Nominal Ø Tolerance Field: h8 Internal Cooling: without Norm: DIN 338 Surface: bright Discount Group: 130 Type: 205 Cutting Direction: right-hand Type: N Point Angle: 118 Material: HSS Code No.: 0.800 Weight: 0.001 No. of Cutting Edges: 2 Total Length: 30.000 Groove Length: 10.000 Usable Length: 9.000 Shank Ø: 0.800 Shank Length: 20.000 Nominal Ø mm: 0.800 Statistical Goods Number: 82075060

Need Technical Advice?

Description

Additional information

Brand

Guhring
