Guhring Jobber drill HSS 9/16

Product Code: 205 14,290

$81.54$74.13 Ex. GST

Product Code: 205 14,290 SKU 205 14,290 Category
Guhring Jobber drill HSS 9/16

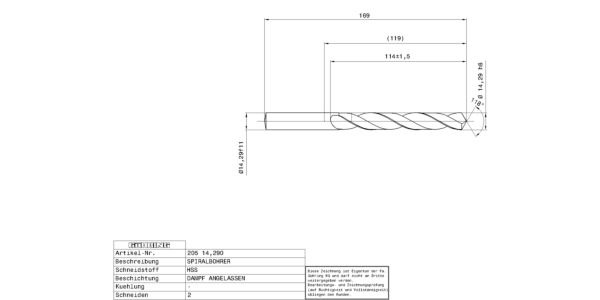

Guhring Jobber drill HSS 9/16 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills short HSS / Ø 14.290 mm h8 / DIN 338 / Surface: steam tempered / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone
Application: grey cast iron, malleable and spheroidal iron • alloyed/unalloyed steel and cast steel • sintered powder metal, German silver and graphite

Additional information

Weight 0.1450 kg
Dimensions
barcode
Additional Information

Point Grinding: Relieved cone
Connection Code Machine Side: Straight shank
Ø-Thinning: 1.000
Nominal Ø Tolerance Field: h8
Internal Cooling: Without
Norm: DIN 338
Surface: Steam tempered
Discount Group: 130
Type: 205
Cutting Direction: Right-hand
Type: N
Point Angle: 118
Material: HSS
Code No.: 14.290
Weight: 0.145
Number of Cutting Edges: 2
Total Length: 169.000
Groove Length: 114.000
Usable Length: 96.000
Shank Ø: 14.290
Shank Length: 55.000
Nominal Ø: 14.290
Nominal Ø Fractional: 9/16
Statistical Goods Number: 82075060

Brand

Guhring
