Guhring Jobber drill HSS-E-PM TiN Coated

Product Code: 5522 3,700

$39.12$35.56 Ex. GST

Product Code: 5522 3,700 SKU 5522 3,700 Category
Guhring Jobber drill HSS-E-PM TiN Coated

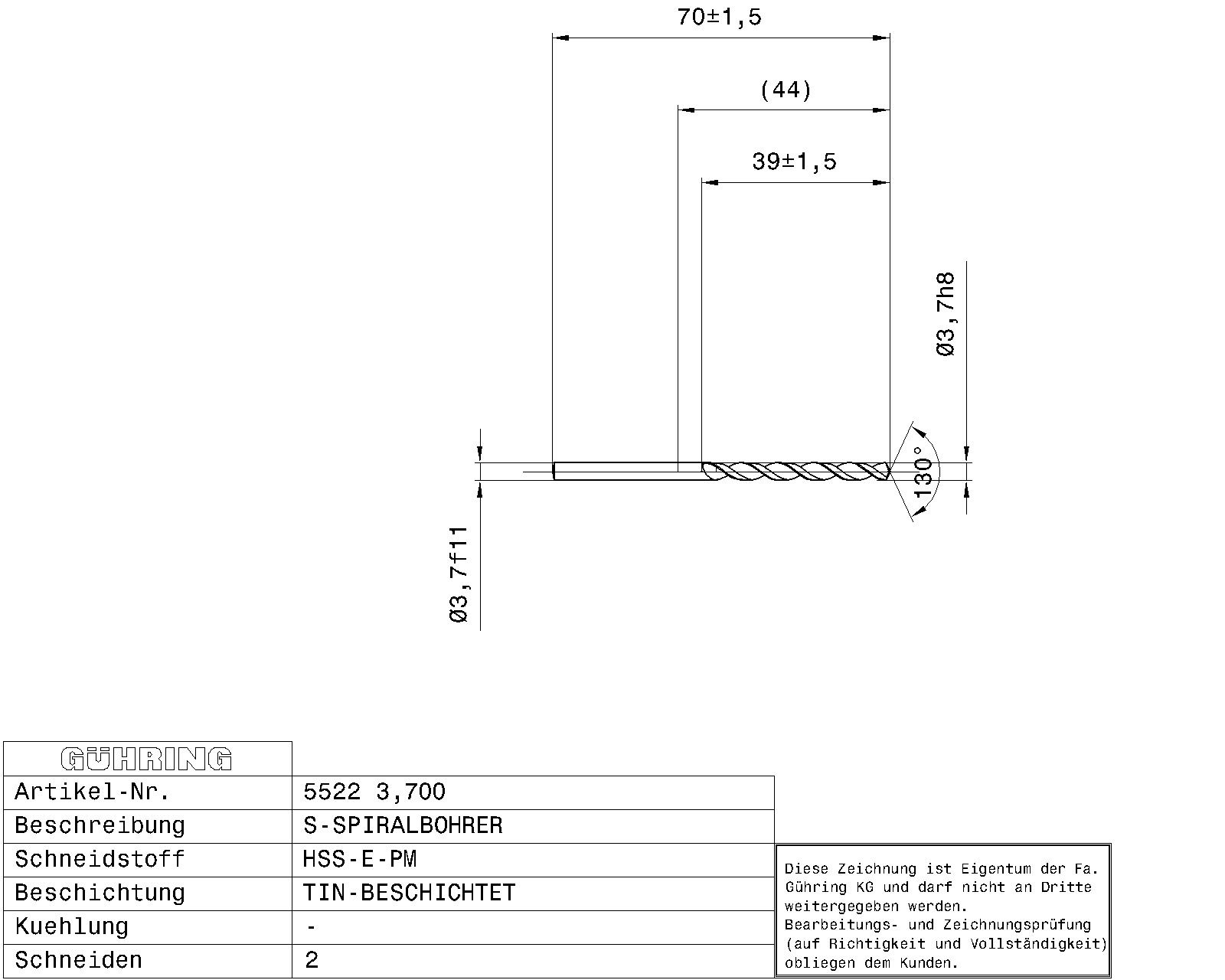

Guhring Jobber drill HSS-E-PM TiN Coated - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills short HSS-E-PM / Ø 3.700 mm h8 / ~5xD / DIN 338 / Surface: TiN / Cutting direction: right-hand / relieved cone 130°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone • PM-Co-alloyed high speed steel • especially high rigidity • especially high wear resistance
Application: high-alloyed steels • heat treatable and case hardened steels • cast iron, brass, bronze

Additional information

Weight 0.0050 kg
Dimensions
barcode
Additional Information

Point Grinding: Relieved Cone
Connection Code Machine Side: Straight Shank
Ø-Thinning: 1.000
Nominal Ø Tolerance Field: h8
Internal Cooling: Without
Norm: DIN 338
Surface: TiN
Discount Group: 159
Type: 5522
Cutting Direction: Right-hand
Type: GT 500 DZ
Point Angle: 130
Material: HSS-E-PM
Code No.: 3.700
Weight: 0.005
No of Cutting Edges: 2
Total Length: 70.000
Groove Length: 39.000
Usable Length: 36.000
Shank Ø: 3.700
Shank Length: 31.000
Nominal Ø (mm): 3.700
Statistical Goods Number: 82075060

Brand

Guhring
