Guhring Jobber drill HSS-E-PM TiN Coated 5/16

Product Code: 5522 7,940

$105.91$96.28 Ex. GST

Product Code: 5522 7,940 SKU 5522 7,940 Category
Guhring Jobber drill HSS-E-PM TiN Coated 5/16

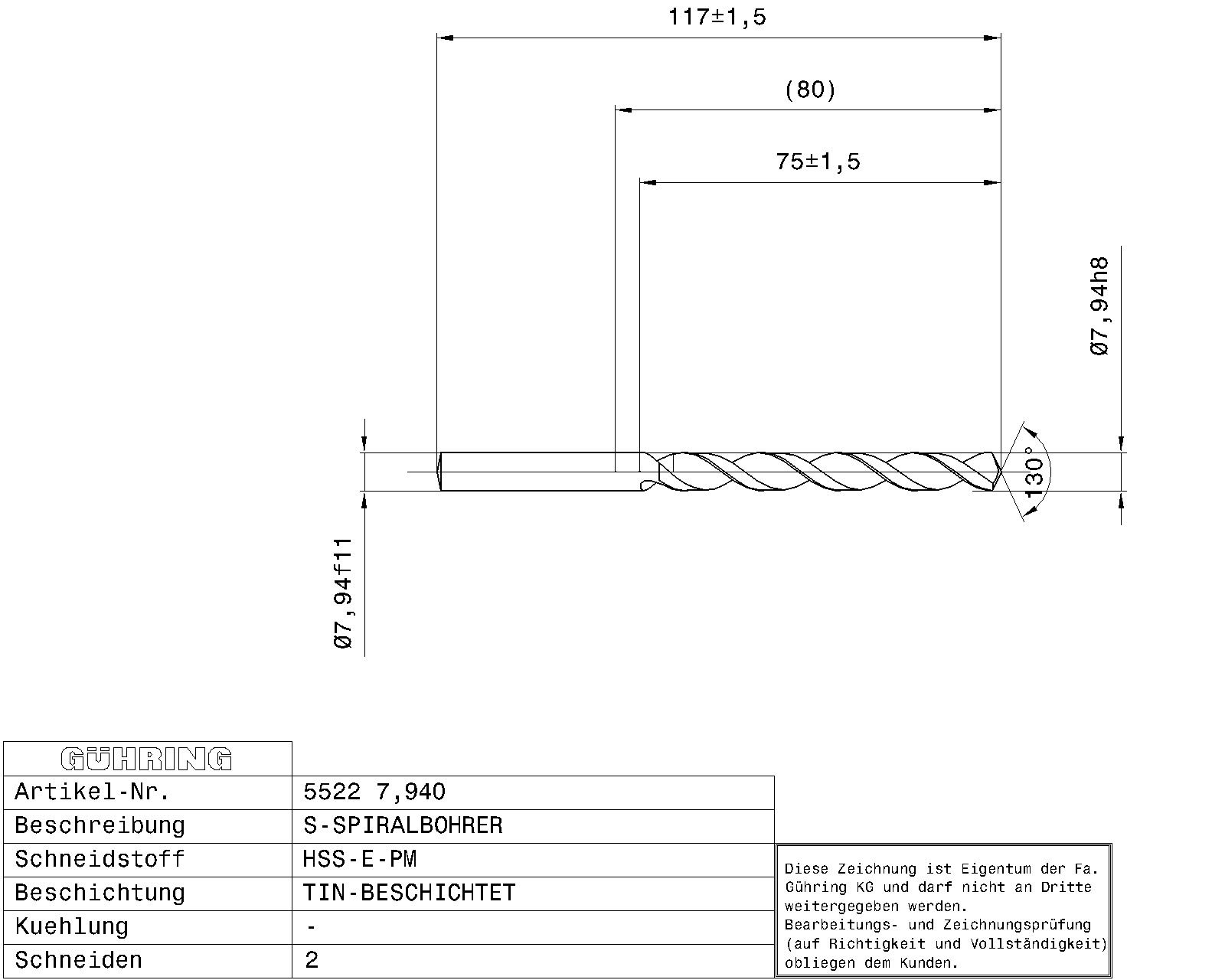

Guhring Jobber drill HSS-E-PM TiN Coated 5/16 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Twist drills short HSS-E-PM / Ø 7.940 mm h8 / ~5xD / DIN 338 / Surface: TiN / Cutting direction: right-hand / relieved cone 130°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone • PM-Co-alloyed high speed steel • especially high rigidity • especially high wear resistance
Application: high-alloyed steels • heat treatable and case hardened steels • cast iron, brass, bronze

Additional information

Weight 0.0240 kg
Dimensions
barcode
Additional Information

Point grinding: Relieved cone
Connection code machine side: Straight shank
Ø-Thinning: 1.000
Nominal Ø tolerance field: h8
Internal cooling: Without
Norm: DIN 338
Surface: TiN
Discount group: 159
Type: 5522
Cutting direction: Right-hand
Type: GT 500 DZ
Point angle: 130
Material: HSS-E-PM
Code no.: 7.940
Weight: 0.024
No of cutting edges: 2
Total length: 117.000
Groove length: 75.000
Usable length: 68.000
Shank Ø: 7.940
Shank length: 42.000
Nominal Ø mm: 7.940
Nominal Ø fractional: 5/16
Statistical goods number: 82075060

Brand

Guhring
