Guhring Jobber drill Solid Carbide

Description

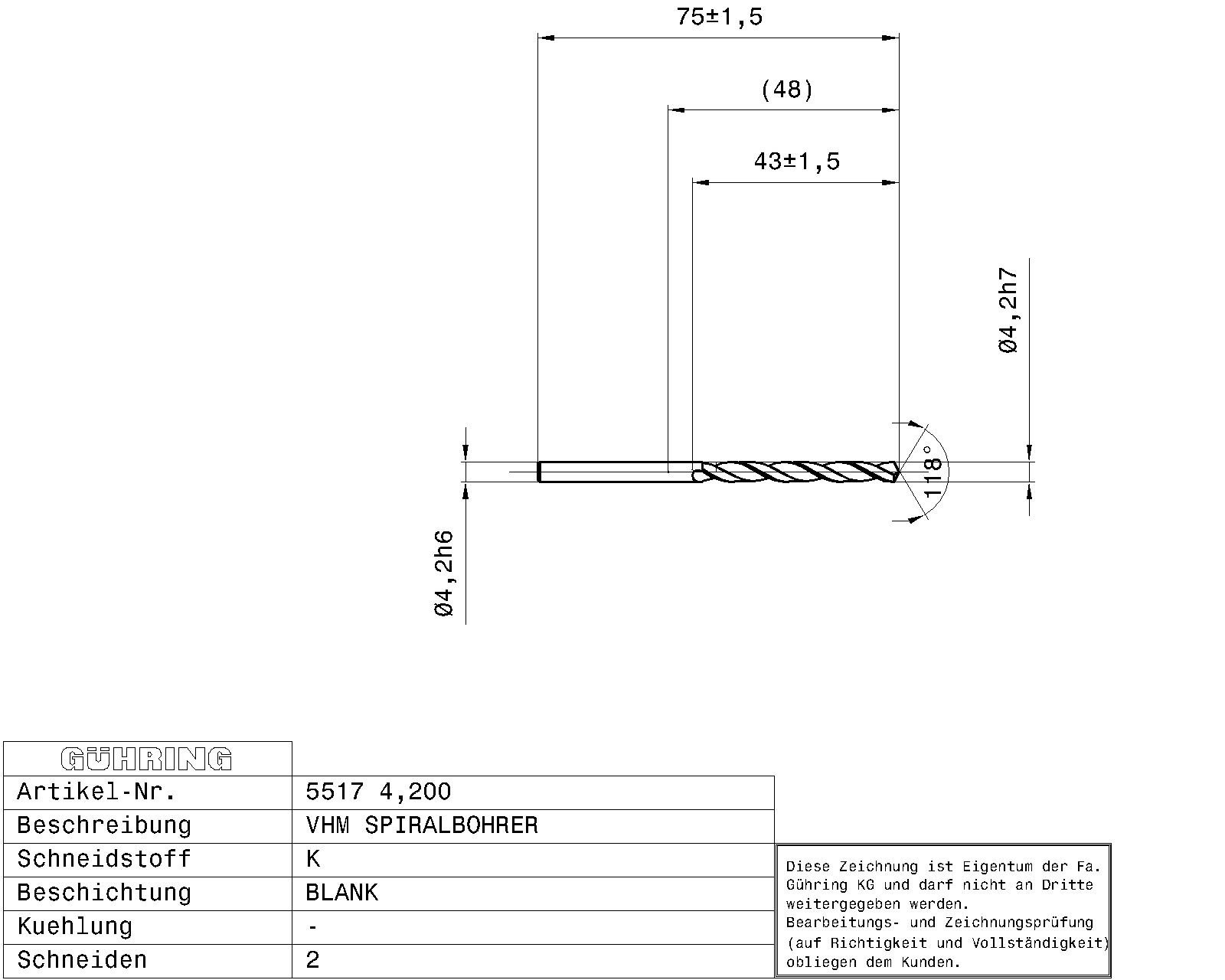

Twist drills short Solid carbide / Ø 4.200 mm h7 / Company std. / Surface: bright / Cutting direction: right-hand / facet point grinding 118°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • grey cast iron • bronze, brass • aluminium and Al alloys • magnesium and magnesium alloys • plastics and fiber reinforced plastics

Additional information

Weight	0.0100 kg
Dimensions
barcode
Additional Information	Point grinding: Facet point grinding Connection code machine side: Straight shank Ø-Thinning: 3.000 Nominal Ø tolerance field: h7 Internal cooling: Without Norm: Company std. Surface: Bright Discount group: 155 Type: 5517 Cutting direction: Right-hand Type: N Point angle: 118 Material: Solid carbide Code no.: 4.100 Weight: 0.010 No of cutting edges: 2 Total length: 75.000 Groove length: 43.000 Usable length: 38.000 Shank Ø: 4.100 Shank length: 32.000 Nominal Ø mm: 4.100 Statistical goods number: 82075050
