Guhring Long Series Twist drills HSS

Description

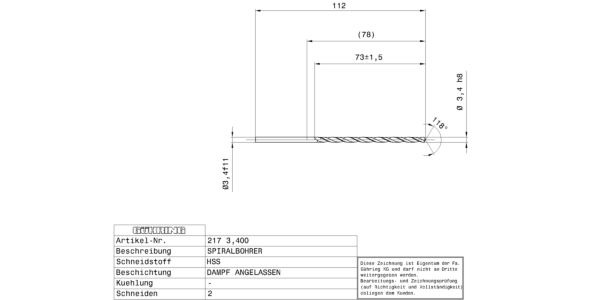

Twist drills long HSS / Ø 3.400 mm h8 / DIN 340 / Surface: steam tempered / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 1.000 mm • relieved cone • for deep holes
Application: alloyed/unalloyed steel and cast steel • grey cast iron, malleable and spheroidal iron • sintered powder metal, German silver and graphite

Additional information

Weight	0.0060 kg
Dimensions
barcode
Additional Information	Point Grinding: Relieved cone Connection Code Machine Side: Straight shank Ø-Thinning: 1.000 Nominal Ø Tolerance Field: h8 Internal Cooling: Without Norm: DIN 340 Surface: Steam tempered Discount Group: 132 Type: 217 Cutting Direction: Right-hand Type: N Point Angle: 118 Material: HSS Code No.: 3.400 Weight: 0.006 Number of Cutting Edges: 2 Total Length: 112.000 Groove Length: 73.000 Usable Length: 69.000 Shank Ø: 3.400 Shank Length: 39.000 Nominal Ø: 3.400 Statistical Goods Number: 82075060
