Guhring Long Slot drill 2 Flute Carbide Fire Coat

Description

Al slot drills XL (2-fluted) / Ø 12.000 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Form: A / Cutting direction: right-hand

Weight	0.2110 kg
Dimensions
barcode

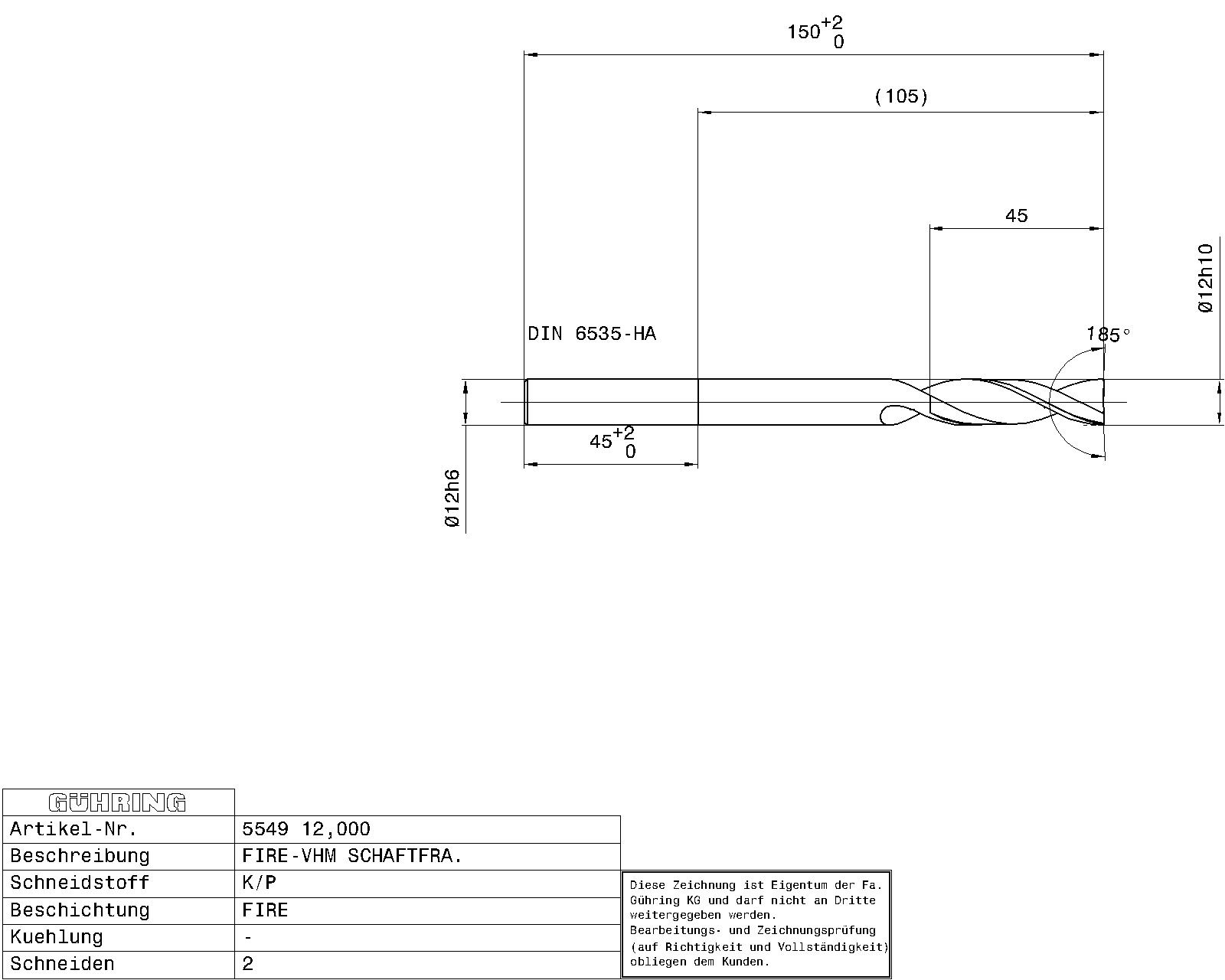

Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5549 Cutting direction: right-hand Type: N Material: Solid carbide No of cutting edges: 2 Form: A Helix angle: 30 Code no.: 12.000 Weight: 0.211 Total length: 150.000 Groove length: 58.000 Usable length: 105.000 Shank Ø: 12.000 Nominal Ø mm: 12.000 Cutting edge length: 45.000 Reach length: 105.000 Corner chamfer: 0.100 Statistical goods number: 82077010
