Guhring Long Slot drill 2 Flute Carbide Fire Coat

Description

Al slot drills XL (2-fluted) / Ø 4.000 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Form: A / Cutting direction: right-hand

Weight	0.0120 kg

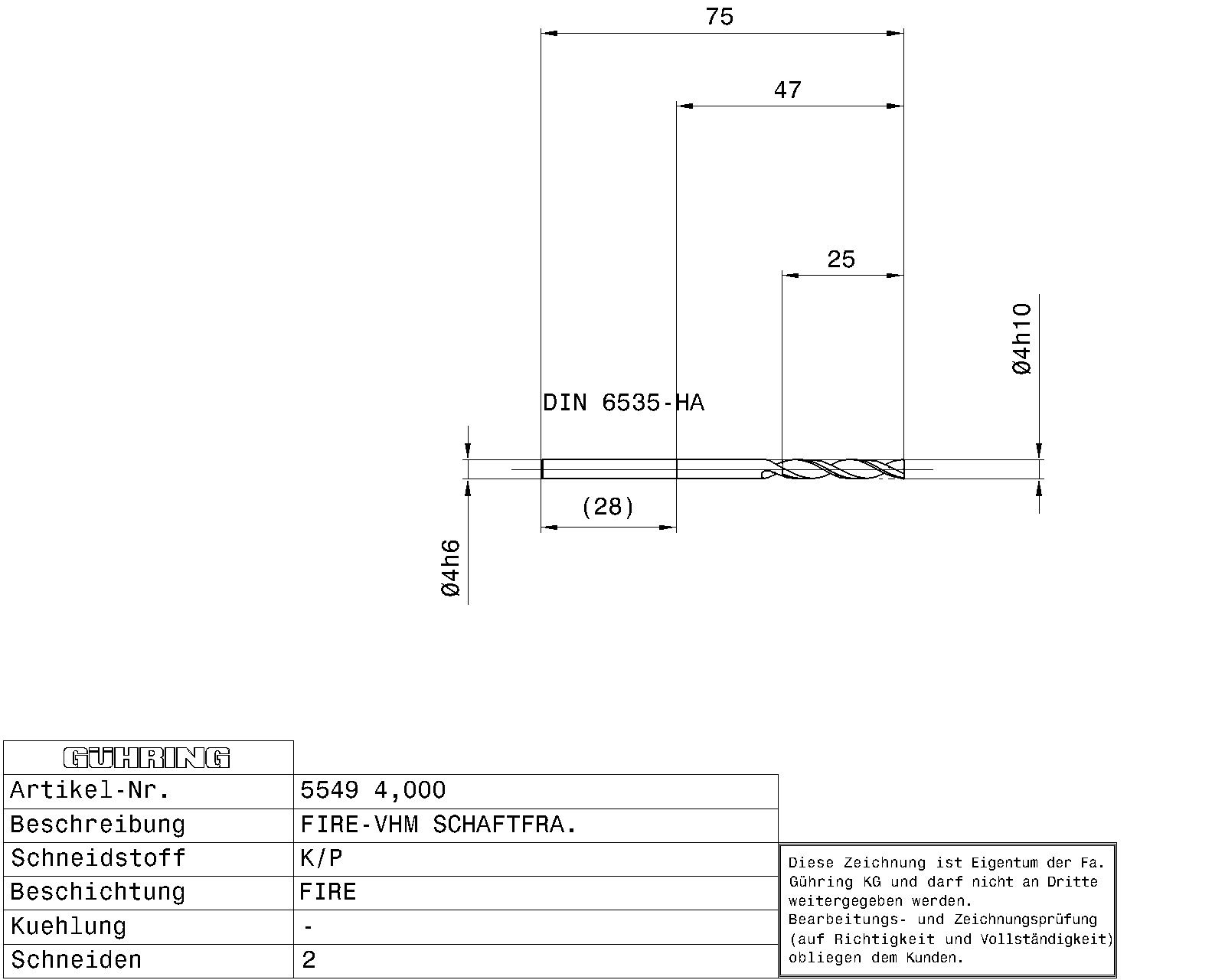

Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5549 Cutting direction: right-hand Type: N Material: Solid carbide Number of cutting edges: 2 Form: A Helix angle: 30° Code no.: 4.000 Weight: 0.012 Total length: 75.000 Groove length: 29.500 Usable length: 47.000 Shank Ø: 4.000 Nominal Ø mm: 4.000 Cutting edge length: 25.000 Reach length: 47.000 Corner chamfer: 0.050 Statistical goods number: 82077010
