Guhring Long Slot drill 2 Flute Carbide Fire Coat

Description

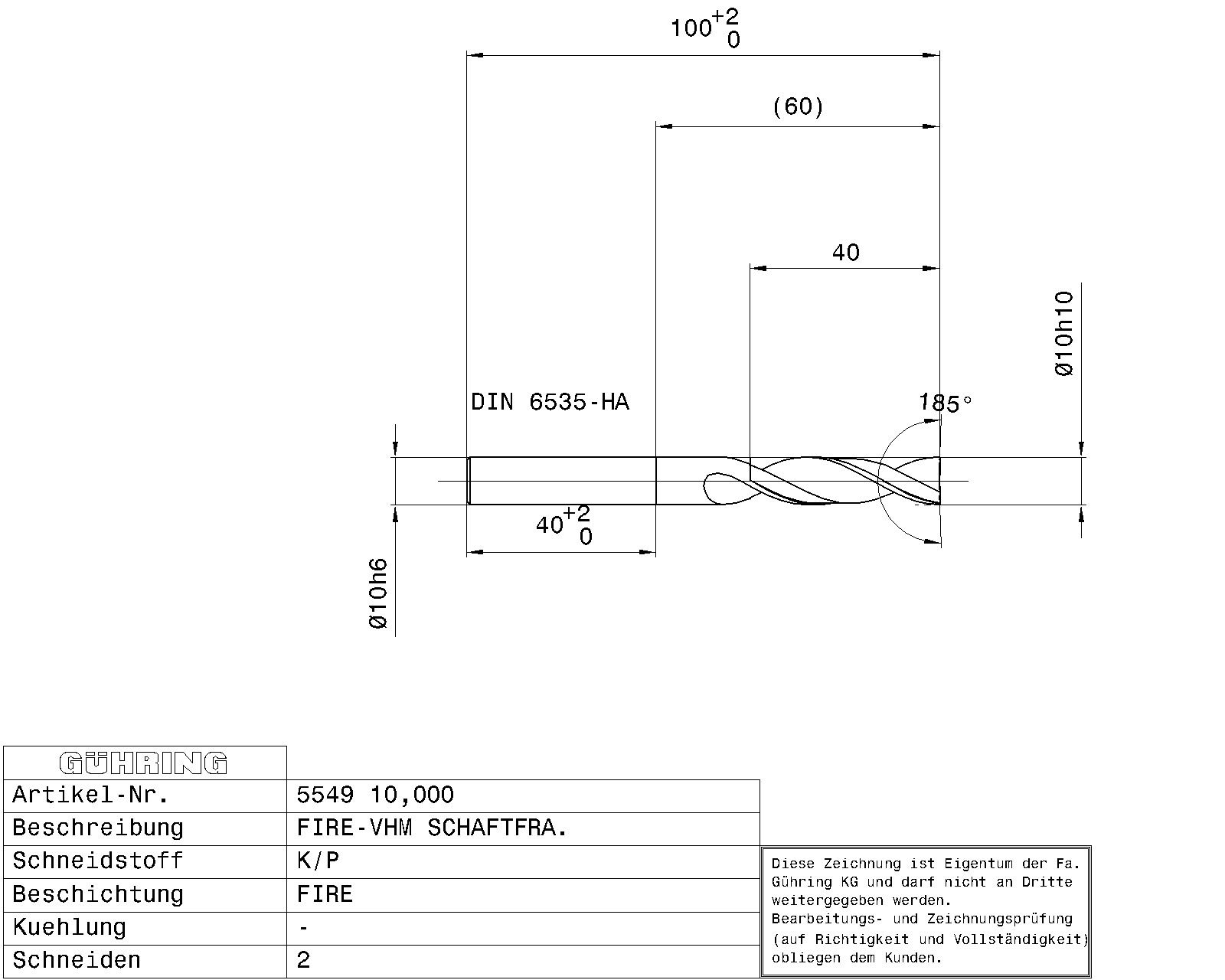

Al slot drills XL (2-fluted) / Ø 10.000 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Form: A / Cutting direction: right-hand

Weight	0.0930 kg
Dimensions
barcode
Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: Company std. Surface: FIRE Discount group: 157 Type: 5549 Cutting direction: right-hand Type: N Material: Solid carbide No of cutting edges: 2 Form: A Helix angle: 30 Code no.: 10.000 Weight: 0.093 Total length: 100.000 Groove length: 50.000 Usable length: 60.000 Shank Ø: 10.000 Nominal Ø mm: 10.000 Cutting edge length: 40.000 Reach length: 60.000 Corner chamfer: 0.100 Statistical goods number: 82077010
